Trailer_Camper Adapter

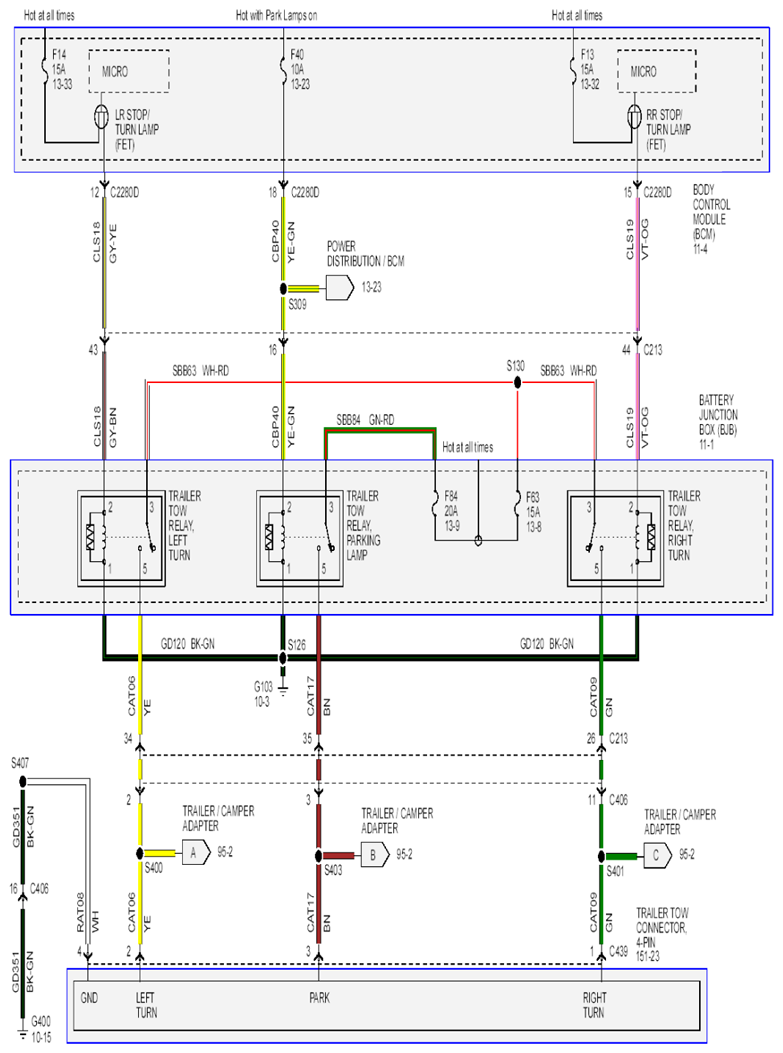

Fig 1: Trailer And Camper Adapter Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

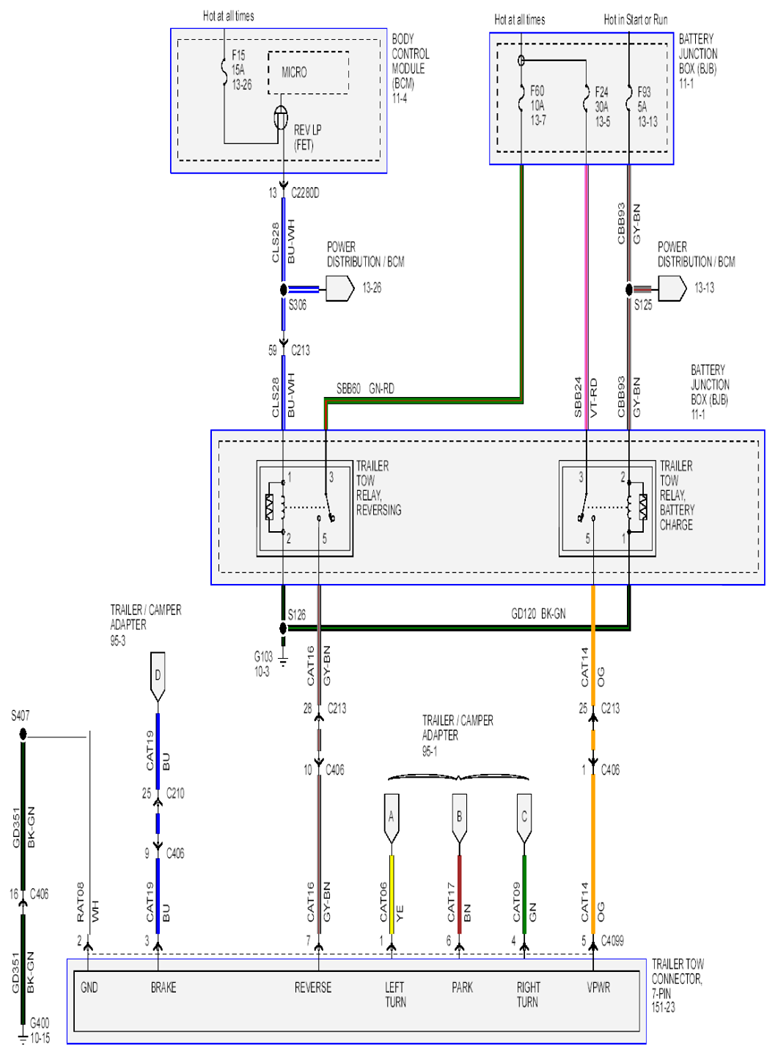

Fig 2: Trailer And Camper Adapter Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

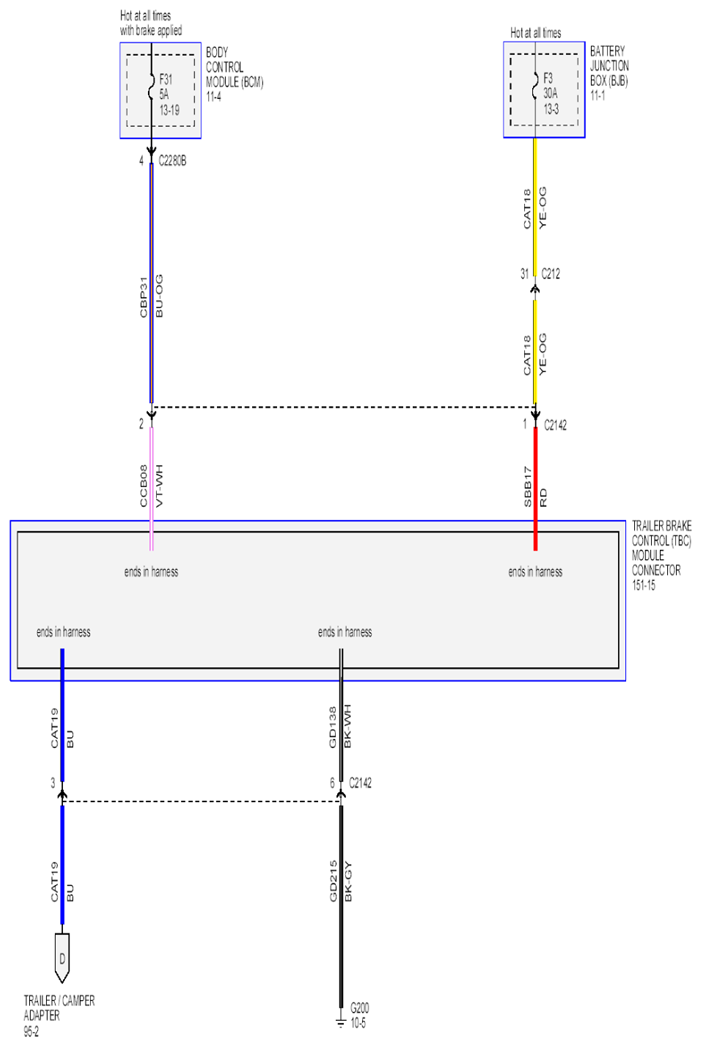

Fig 3: Trailer And Camper Adapter Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
