Ford
>>
2011
>>
Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Starting System
>>
With IA
With IA

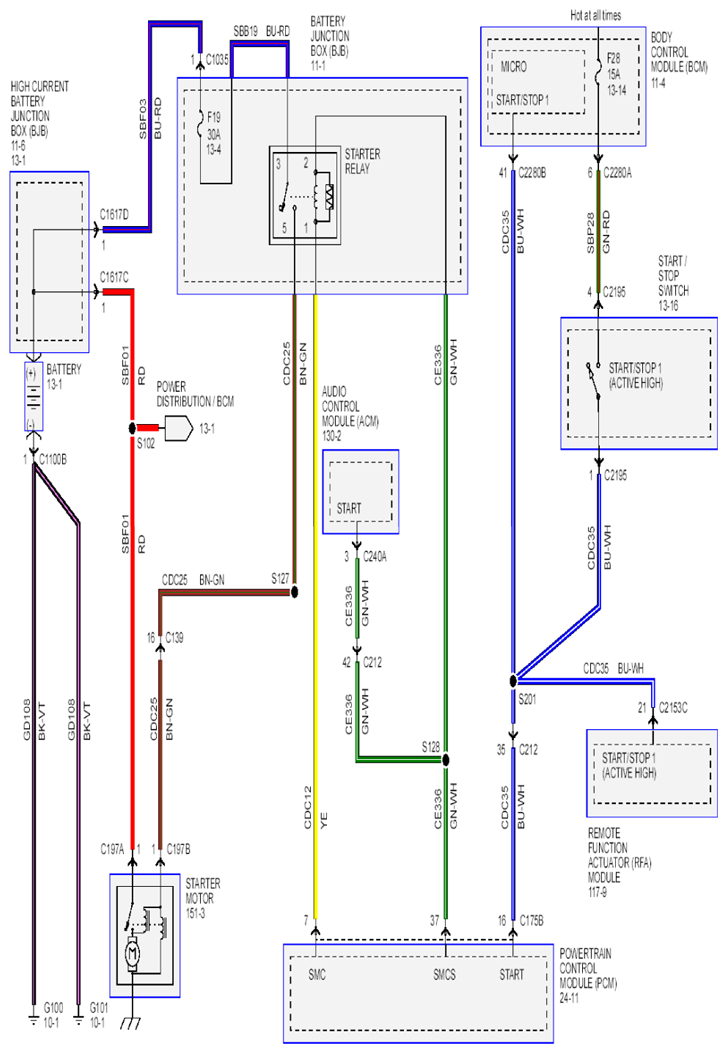

Fig 1: Starting System Circuit Diagram (With IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
