Ford
>>
2011
>>
Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Shift Interlock
>>
With IA
With IA

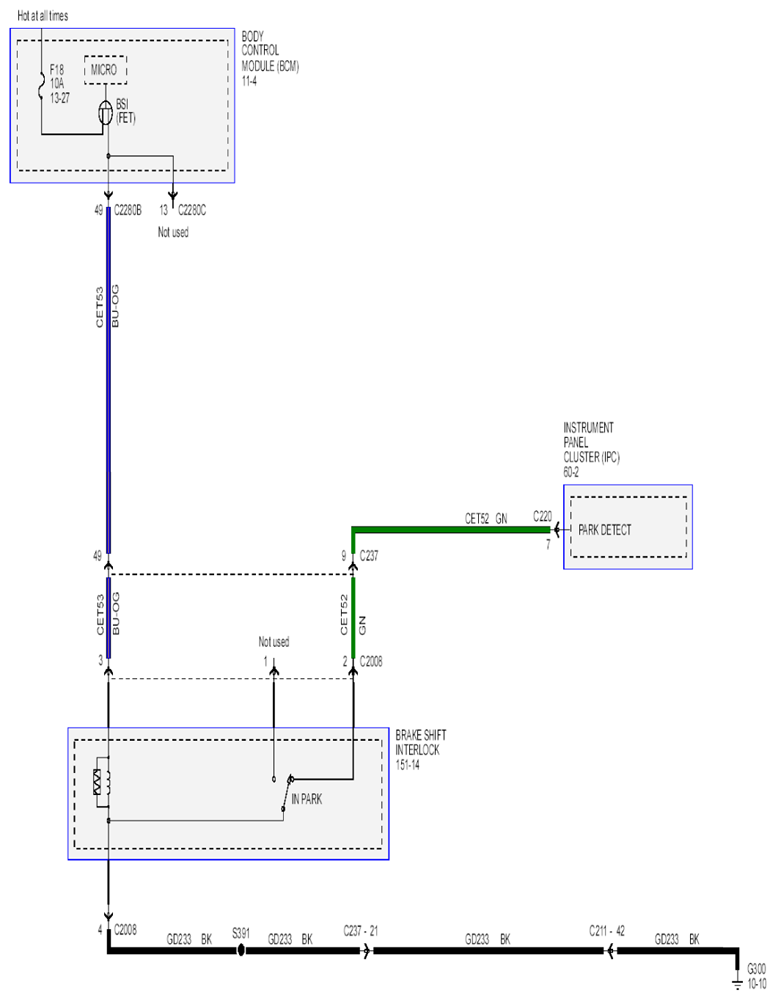

Fig 1: Shift Interlock Circuit Diagram - With IA (1 Of 2)
Courtesy of FORD MOTOR CO.

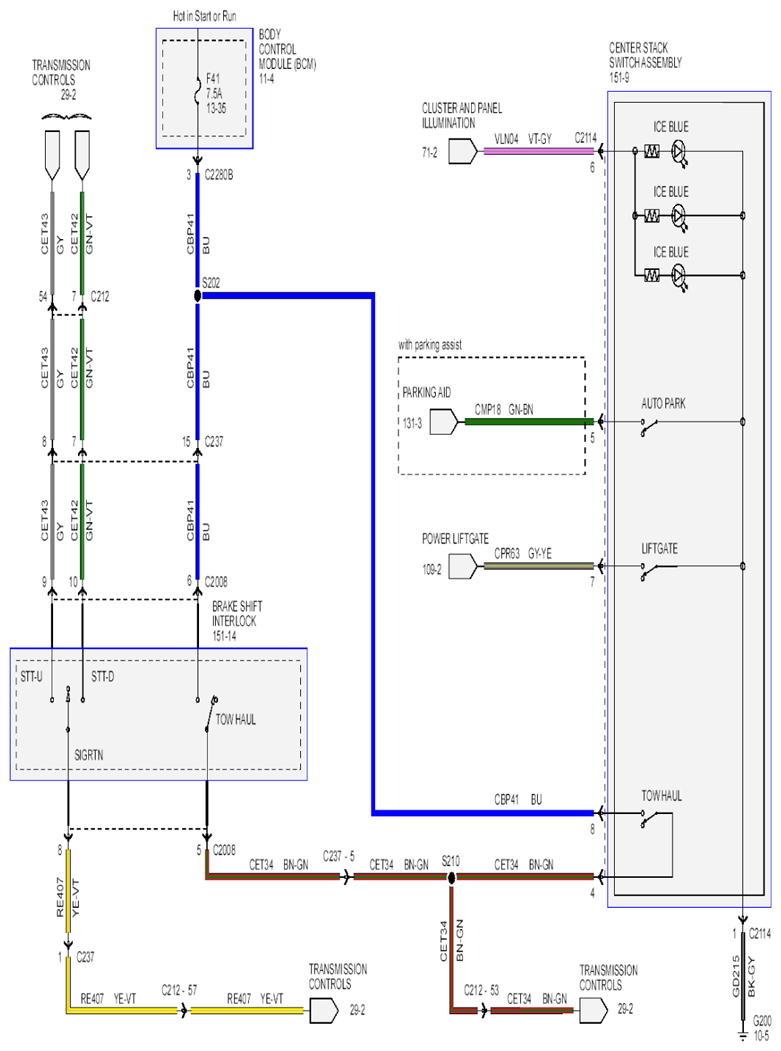

Fig 2: Shift Interlock Circuit Diagram - With IA (2 Of 2)
Courtesy of FORD MOTOR CO.
