Shift Interlock: WITHOUTIA

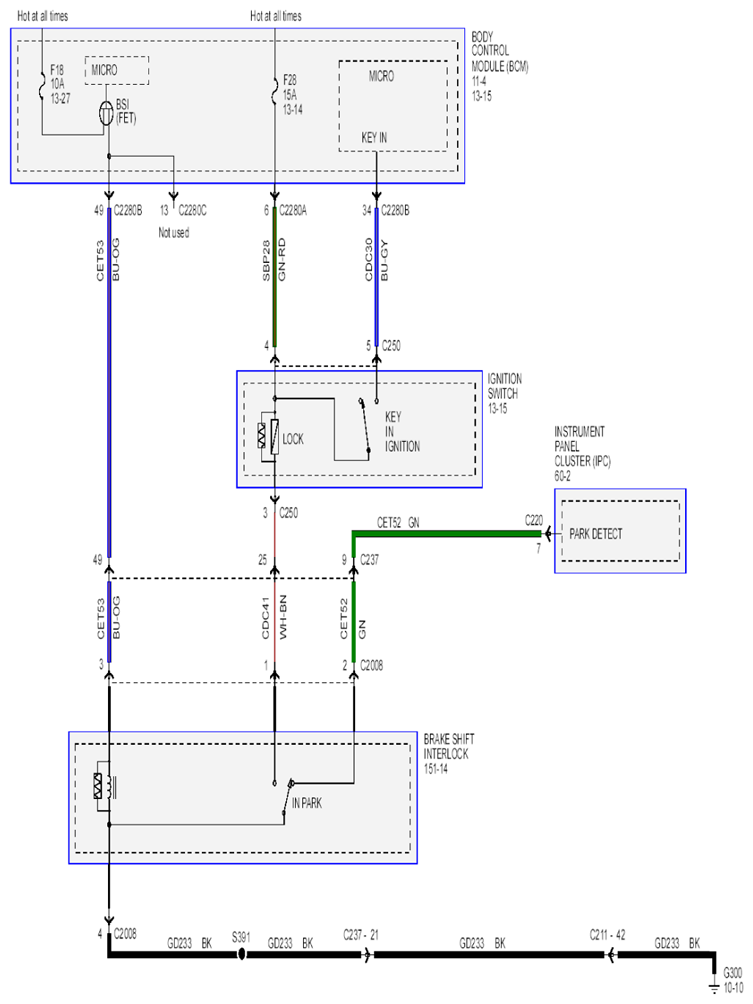

Fig 1: Shift Interlock Circuit Diagram - Without IA
G07857401Courtesy of FORD MOTOR CO.
