Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Windows
>>
XLT, Limited
XLT, Limited

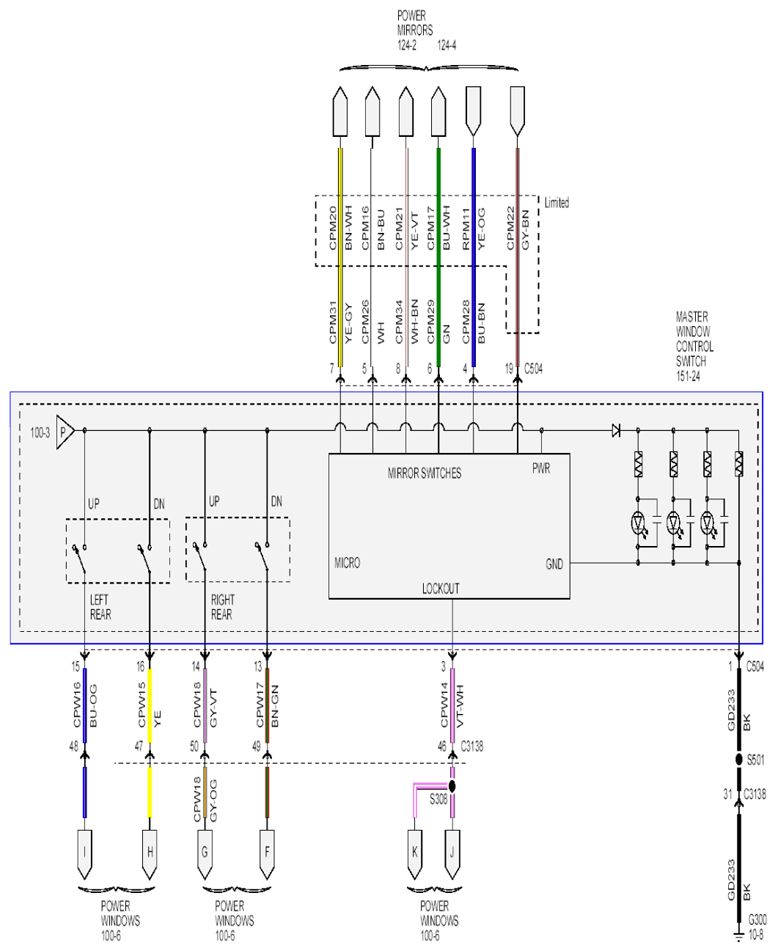

Fig 1: Power Windows Circuit Diagram - XLT And Limited (1 Of 4)
Courtesy of FORD MOTOR CO.

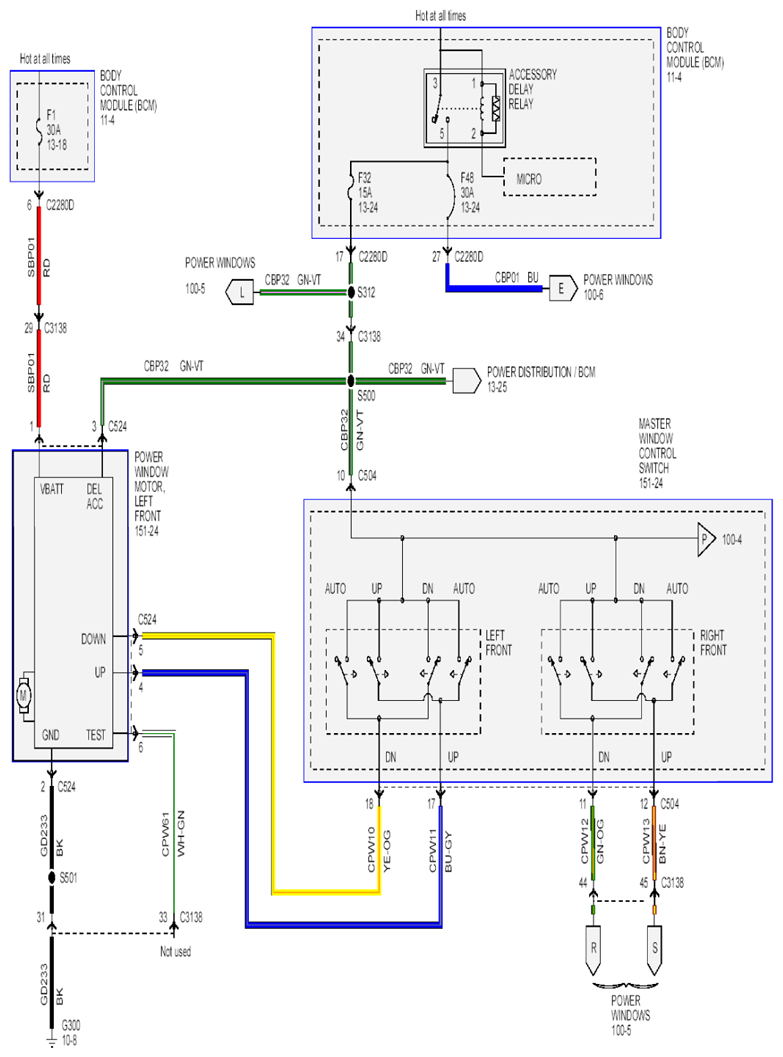

Fig 2: Power Windows Circuit Diagram - XLT And Limited (2 Of 4)
Courtesy of FORD MOTOR CO.

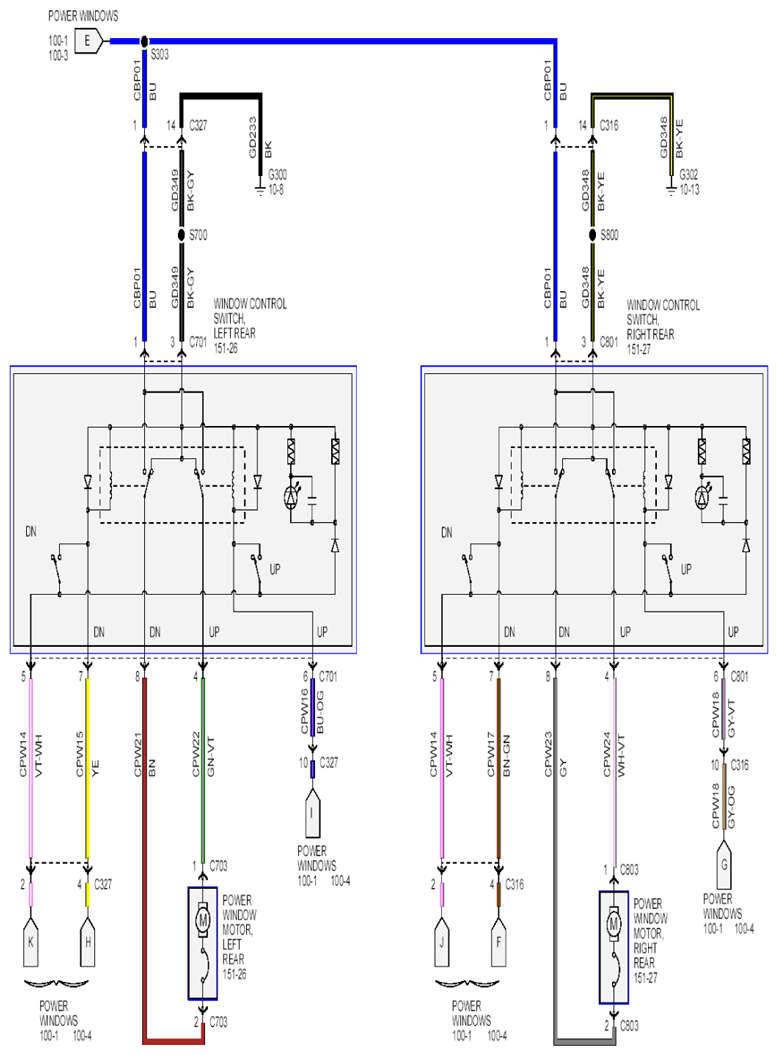

Fig 3: Power Windows Circuit Diagram - XLT And Limited (3 Of 4)
Courtesy of FORD MOTOR CO.

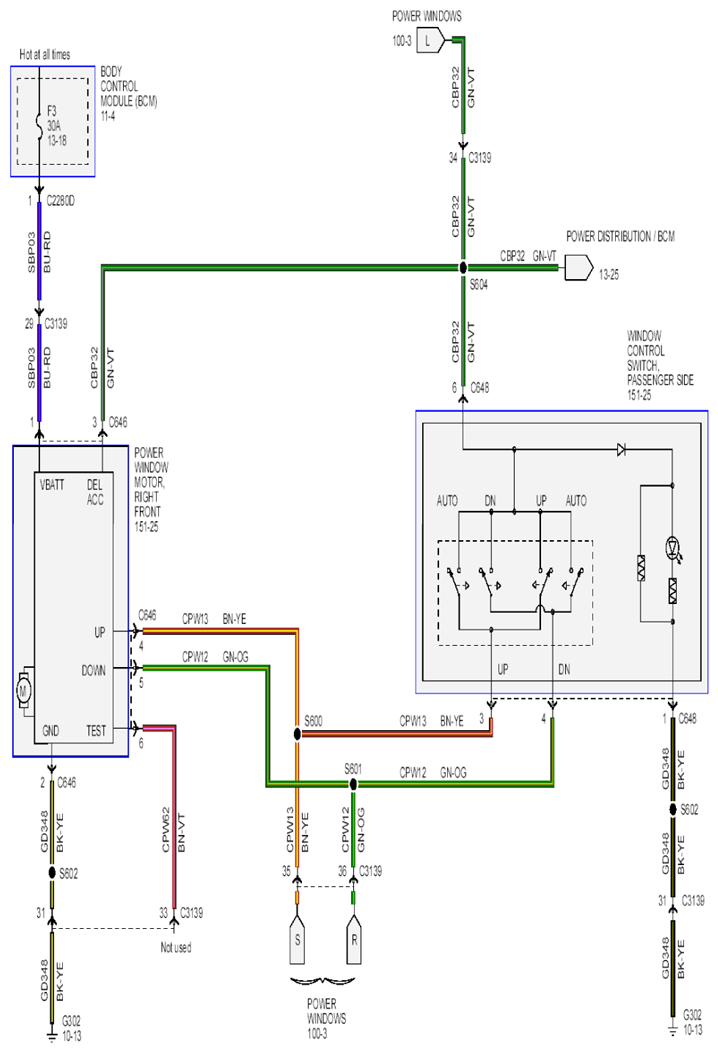

Fig 4: Power Windows Circuit Diagram - XLT And Limited (4 Of 4)
Courtesy of FORD MOTOR CO.
