Ford
>>
2011
>>
Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Windows
>>
Base
Power Windows: Base

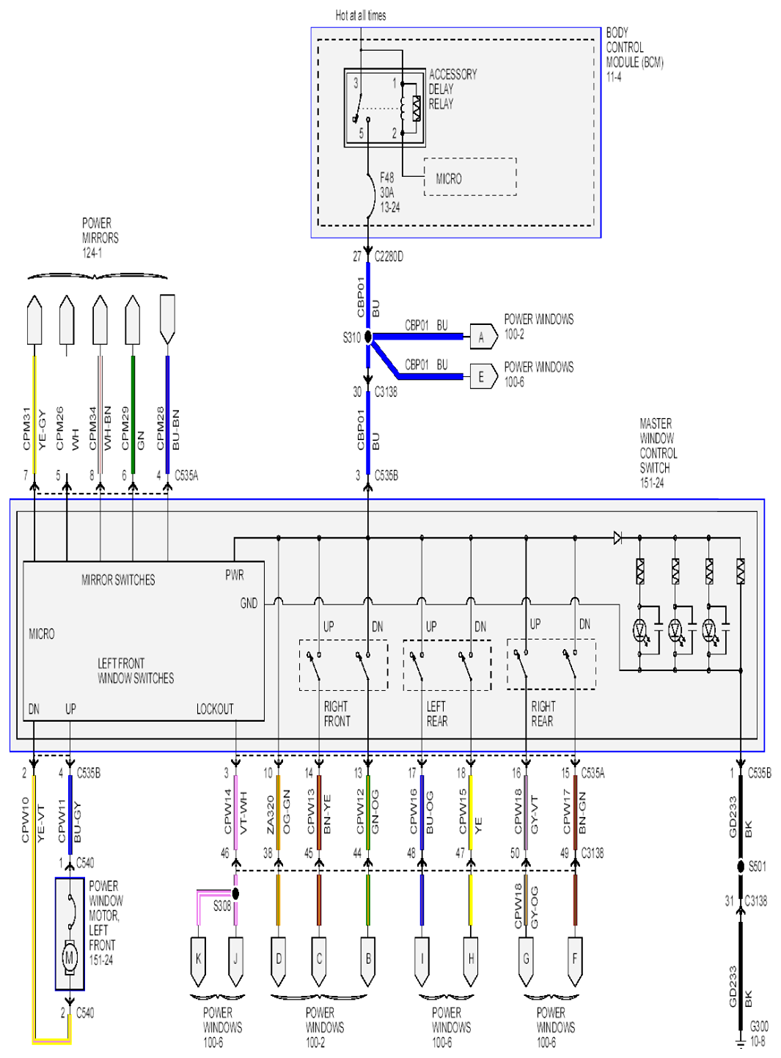

Fig 1: Power Windows Circuit Diagram - Base (1 Of 2)
Courtesy of FORD MOTOR CO.

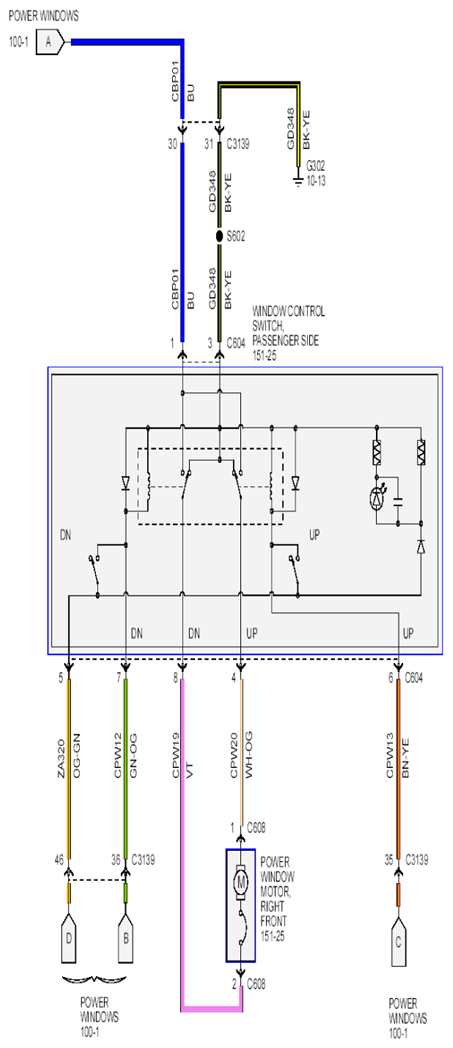

Fig 2: Power Windows Circuit Diagram - Base (2 Of 2)
Courtesy of FORD MOTOR CO.
