Power Steering Controls
Power Steering Controls

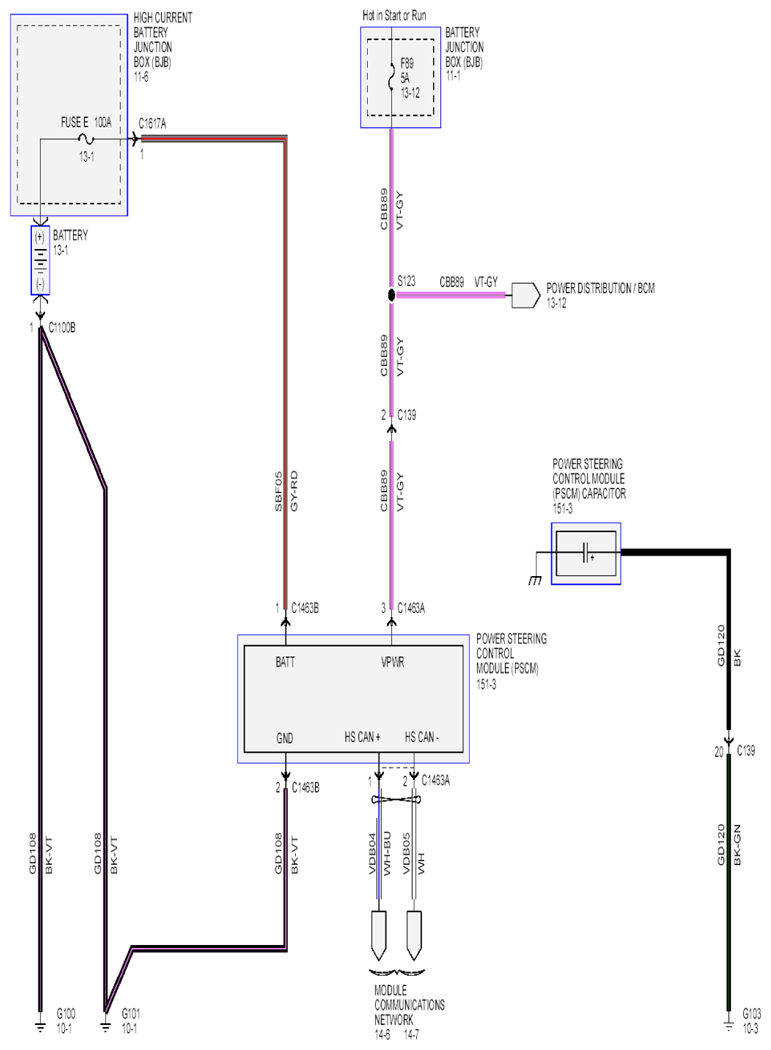

Fig 1: Power Steering Controls Circuit Diagram
Courtesy of FORD MOTOR CO.
