Power Distribution_BCM: Notes

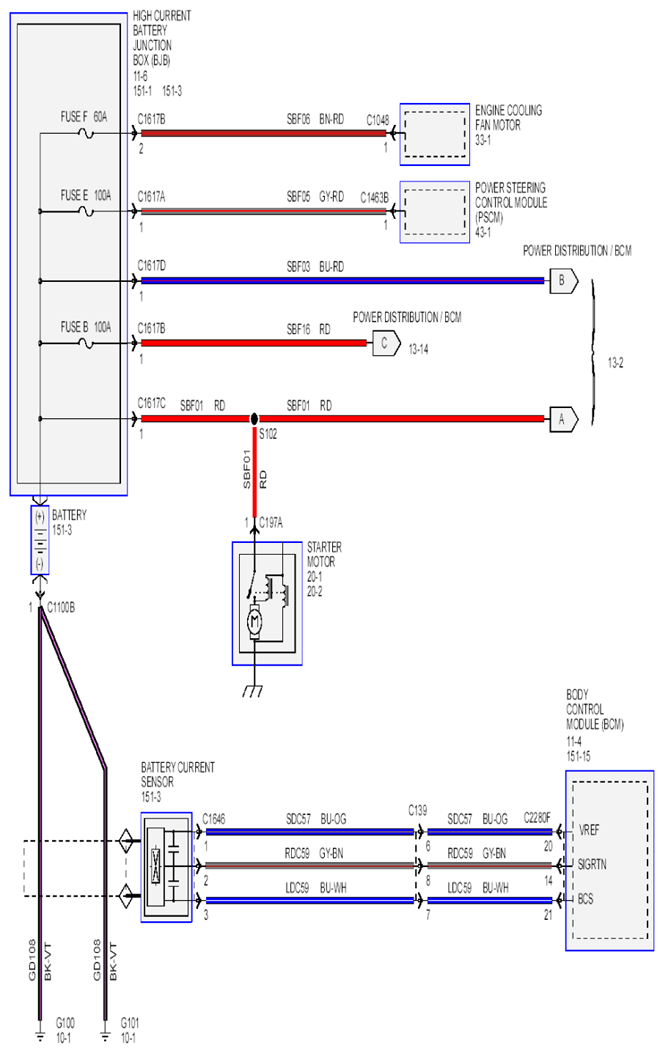

Fig 1: Power Distribution Circuit Diagram

G07857327

Courtesy of FORD MOTOR CO.
