Power Distribution_BCM: F58

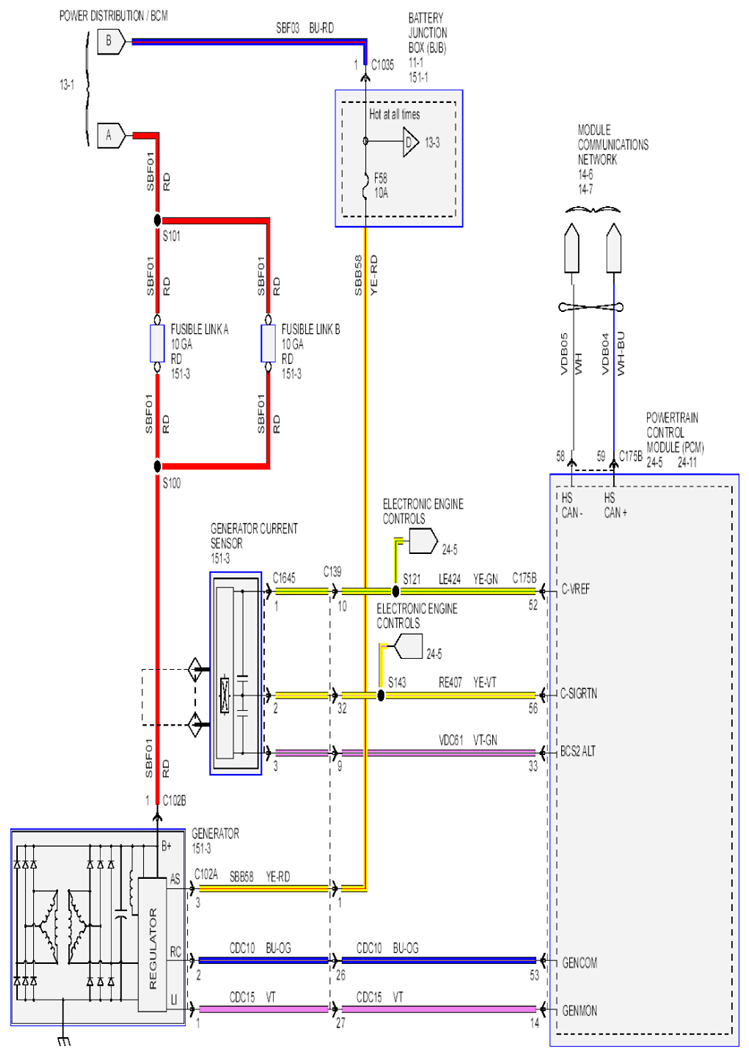

Fig 1: Power Distribution Circuit Diagram - F58

G07857328

Courtesy of FORD MOTOR CO.
