Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F4, F25
F4, F25

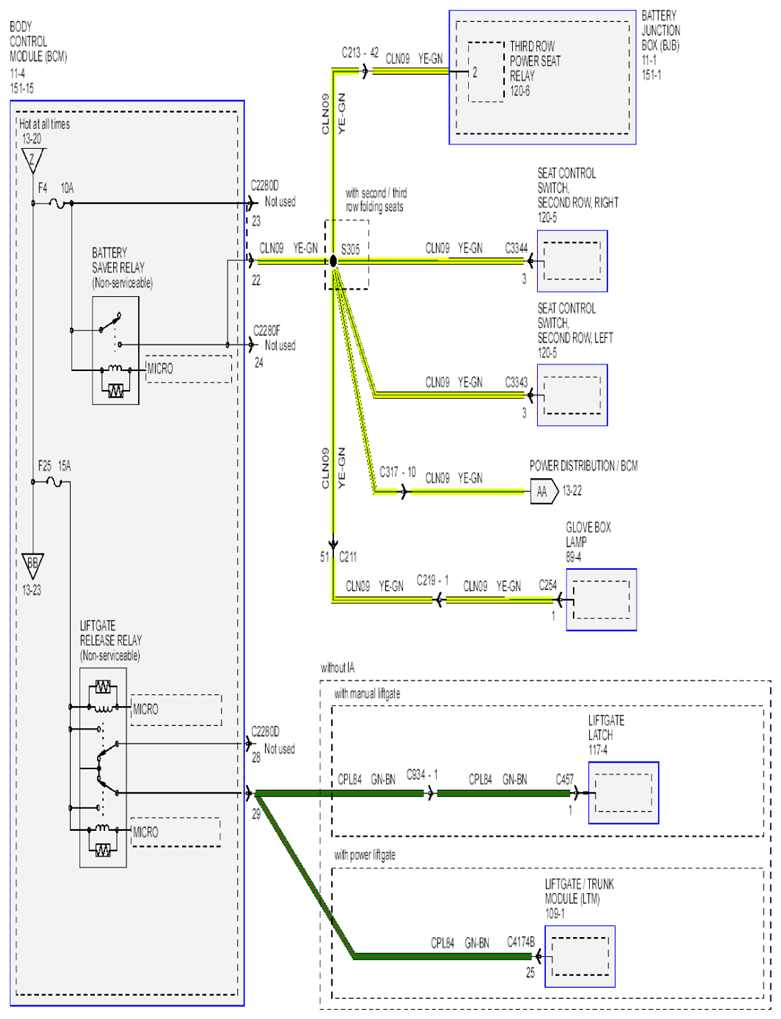

Fig 1: Power Distribution Circuit Diagram - F4 And F25 (1 Of 2)
Courtesy of FORD MOTOR CO.

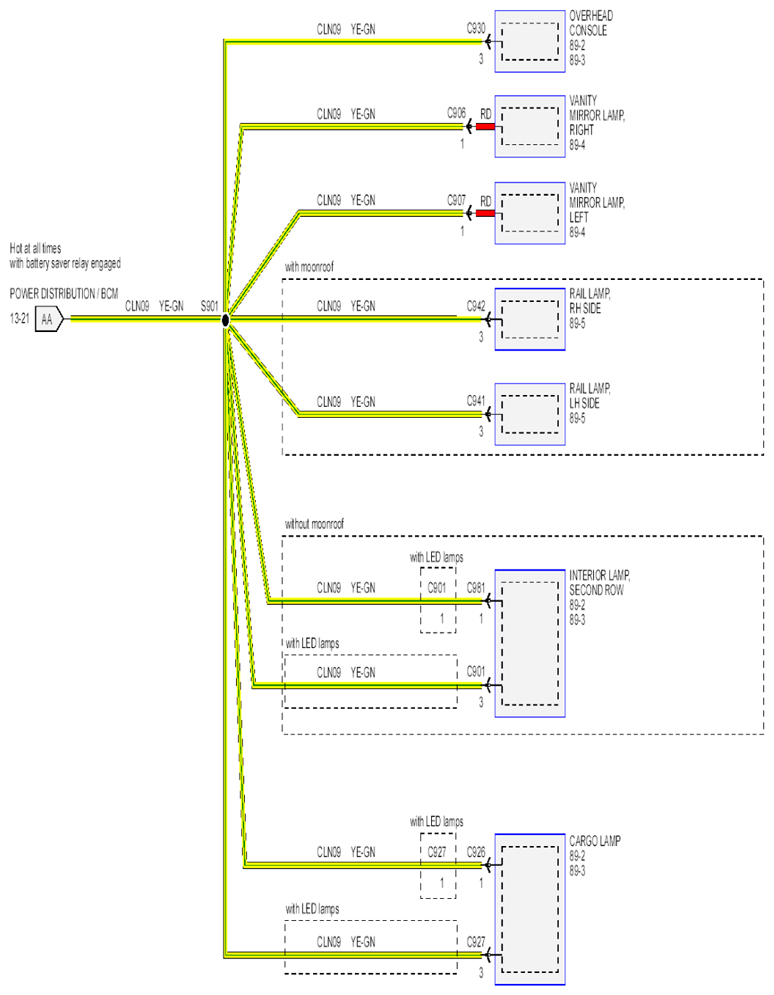

Fig 2: Power Distribution Circuit Diagram - F4 And F25 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
