Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F30, F40
F30, F40

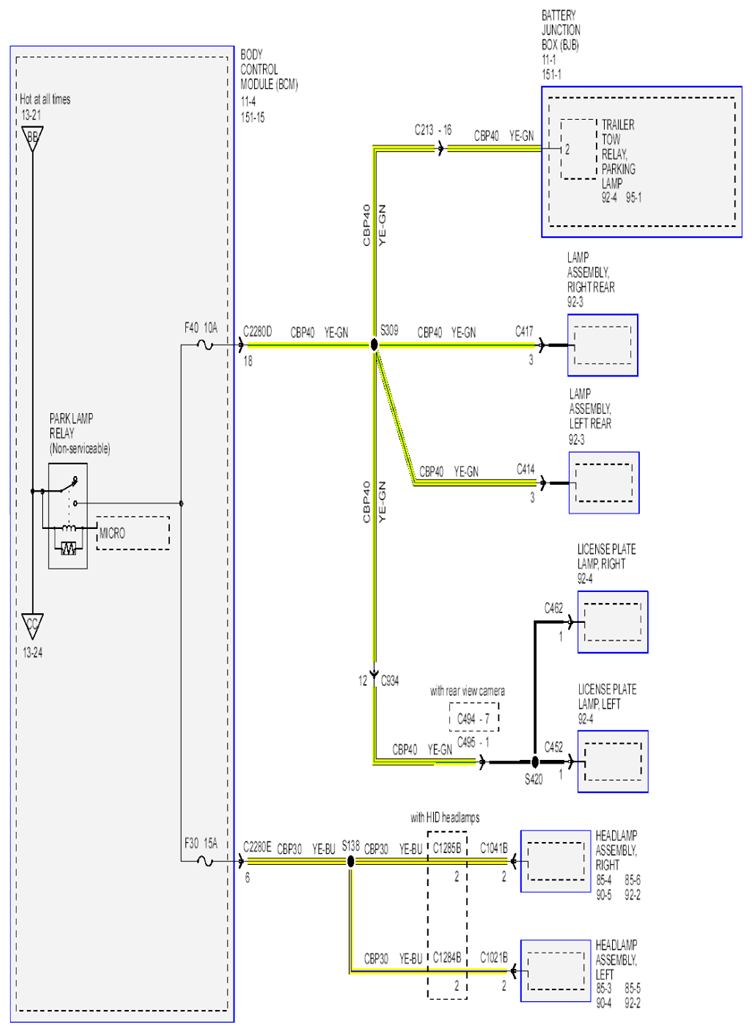

Fig 1: Power Distribution Circuit Diagram - F30 And F40
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
