Home >> Ford >> 2011 >> Explorer Base, AWD, 6F55 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Wiring Diagrams >> Power Distribution_BCM >> F22, F47

F22, F47

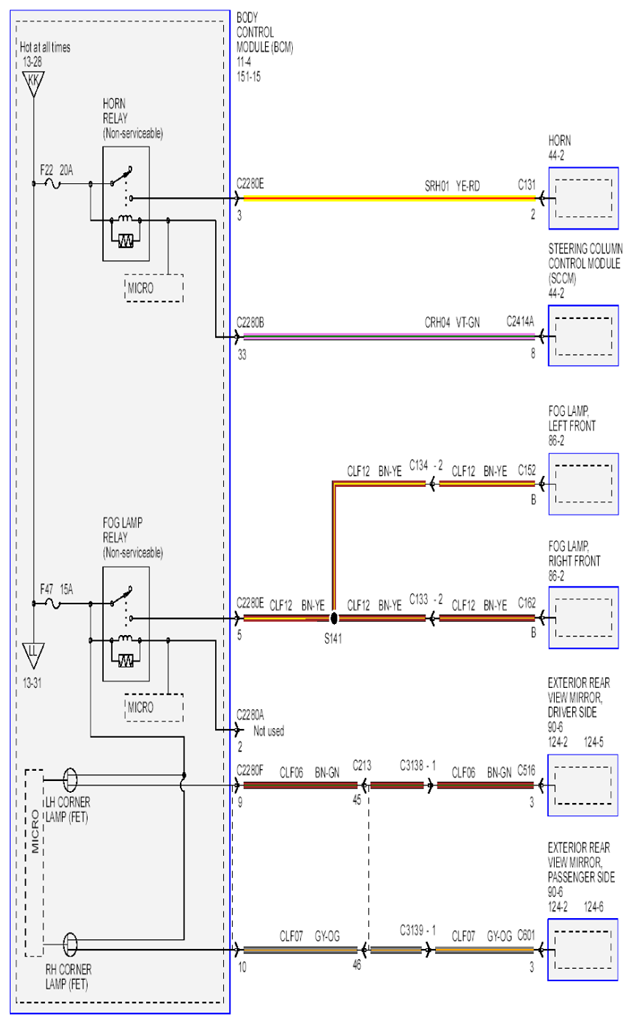

Fig 1: Power Distribution Circuit Diagram - F22 And F47

G07857356

Courtesy of FORD MOTOR CO.
