Power Distribution_BCM: F20

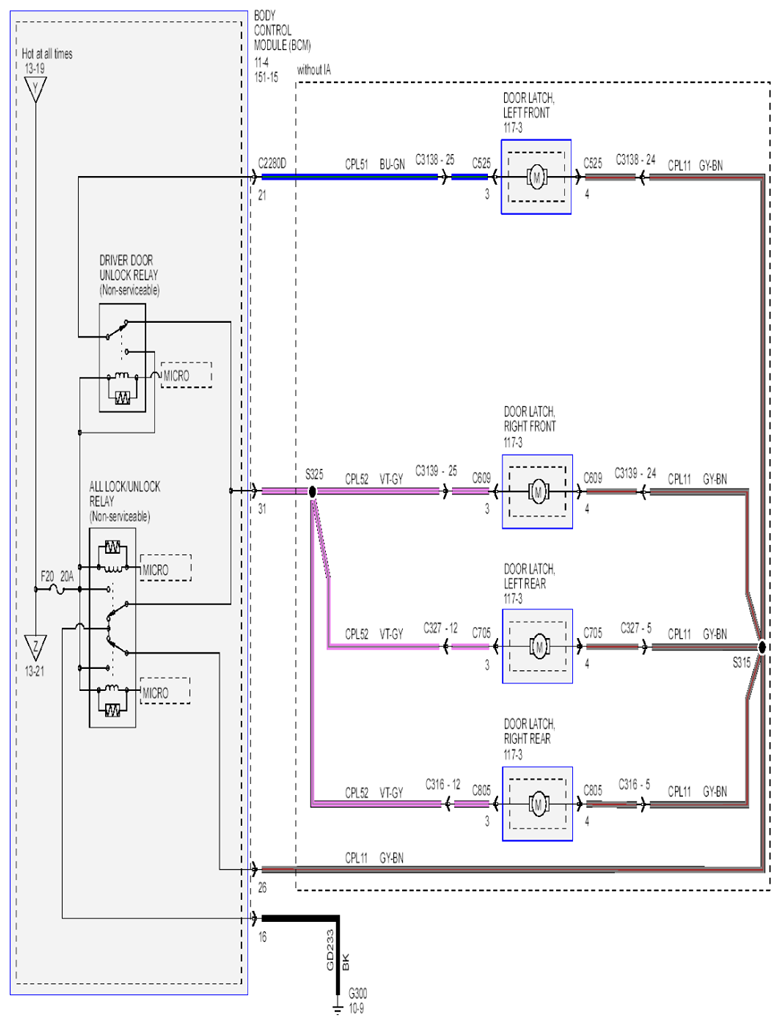

Fig 1: Power Distribution Circuit Diagram - F20

G07857346

Courtesy of FORD MOTOR CO.
