Power Distribution_BCM: F18

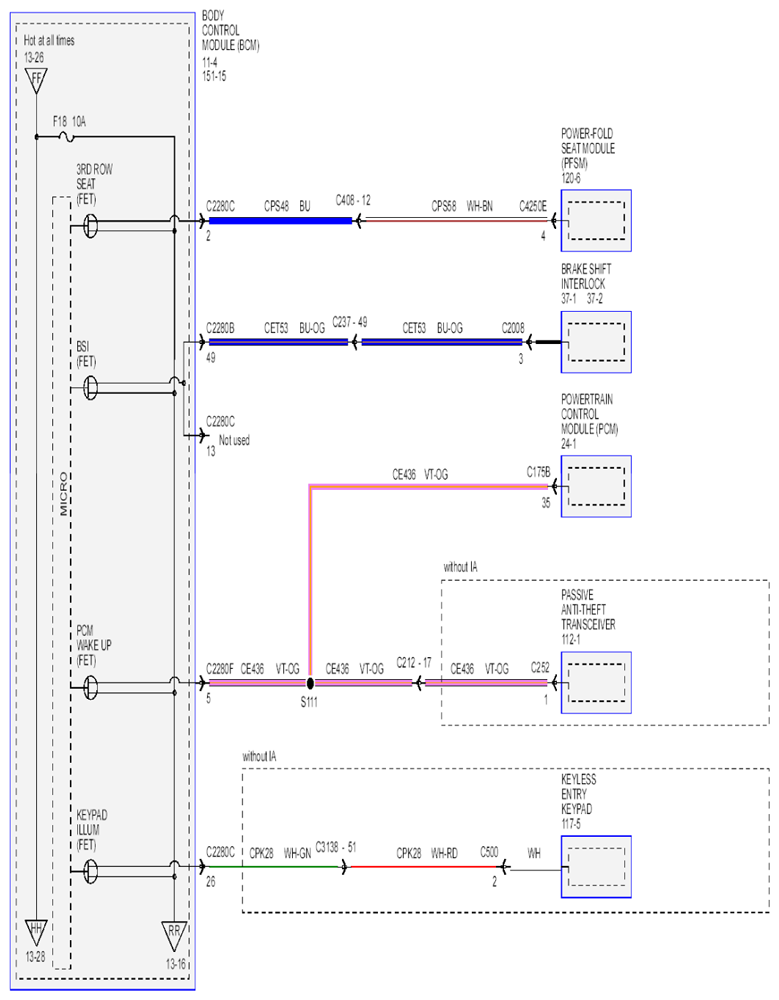

Fig 1: Power Distribution Circuit Diagram - F18

G07857353

Courtesy of FORD MOTOR CO.
