Power Distribution_BCM: F13

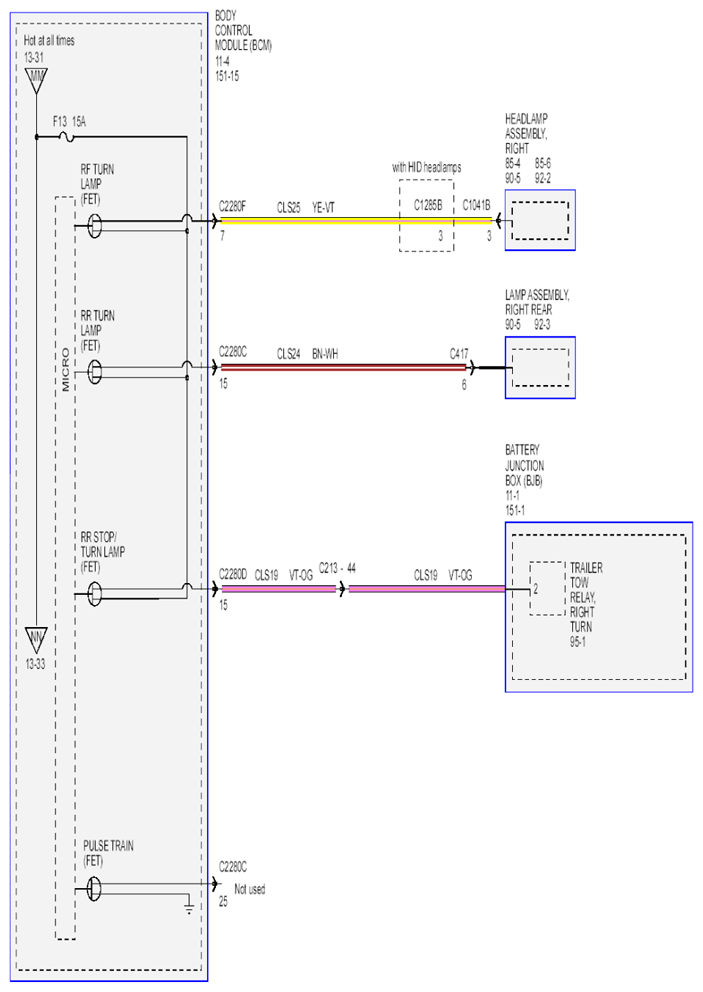

Fig 1: Power Distribution Circuit Diagram - F13

G07857358

Courtesy of FORD MOTOR CO.
