Power Distribution_BCM: F12

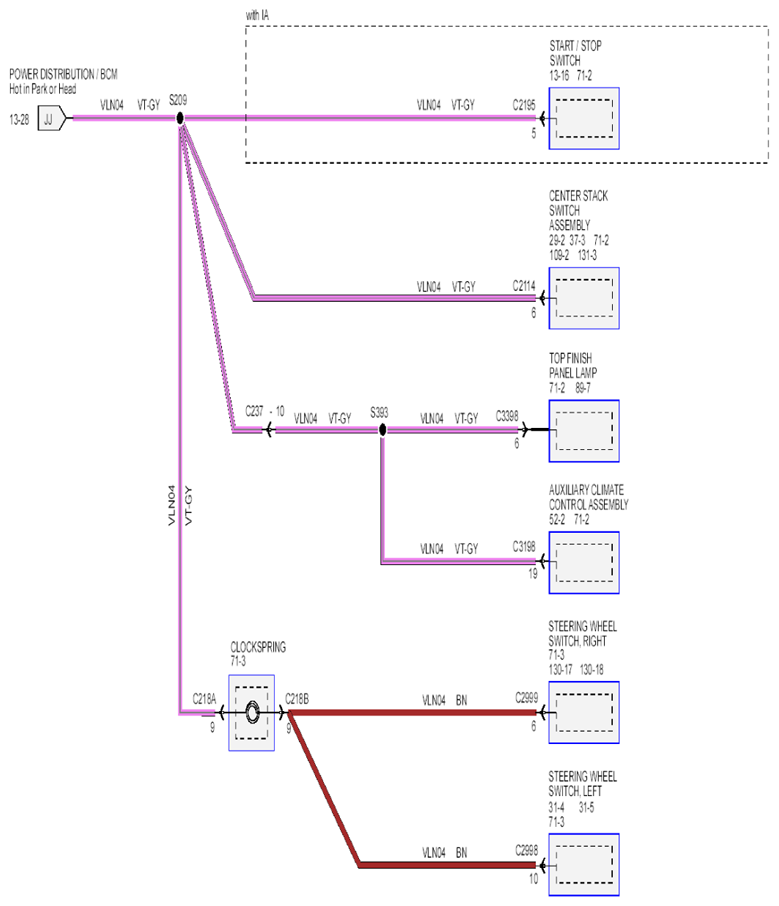

Fig 1: Power Distribution Circuit Diagram - F12 (1 Of 2)
Courtesy of FORD MOTOR CO.

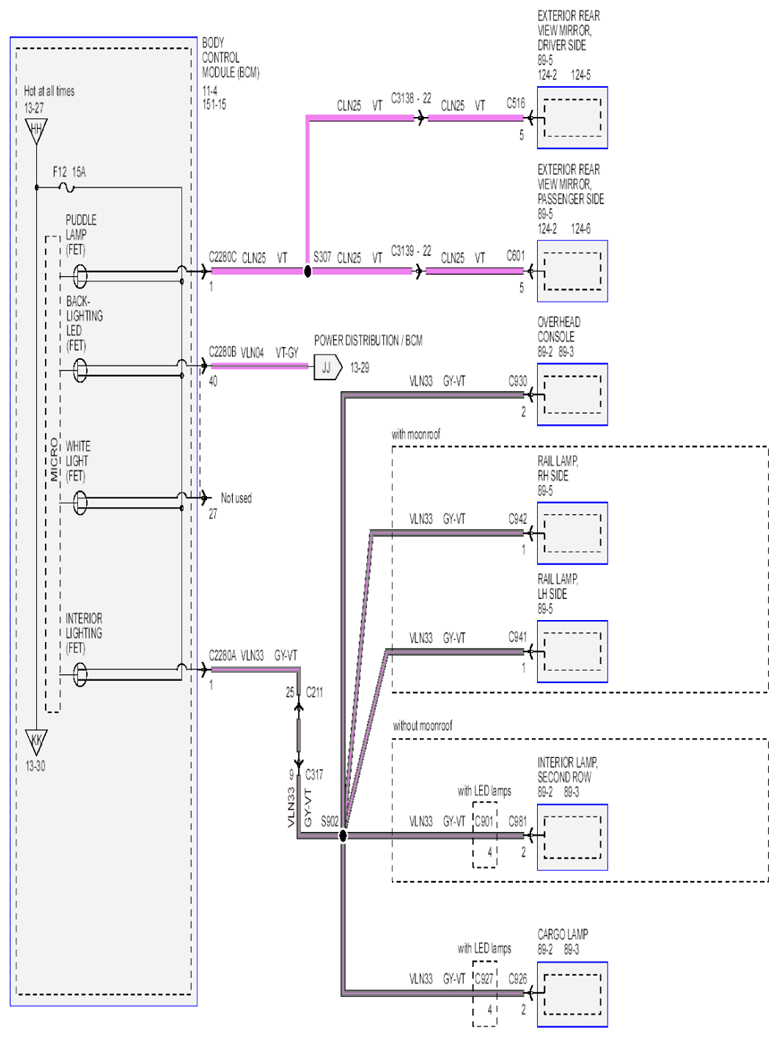

Fig 2: Power Distribution Circuit Diagram - F12 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
