Without Adaptive Cruise

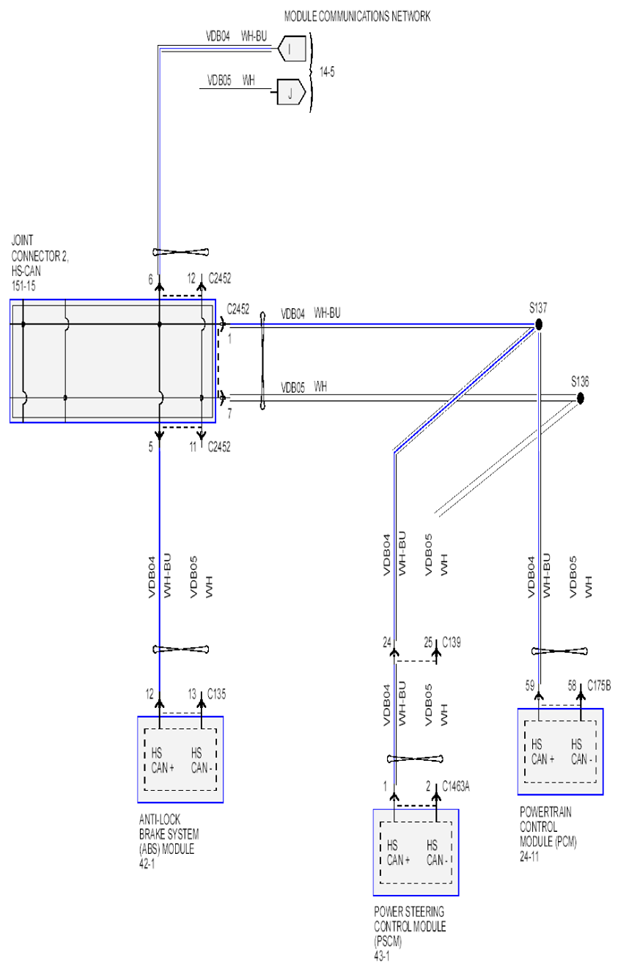

Fig 1: Module Communications Network Circuit Diagram - Without Adaptive Cruise

Courtesy of FORD MOTOR CO.

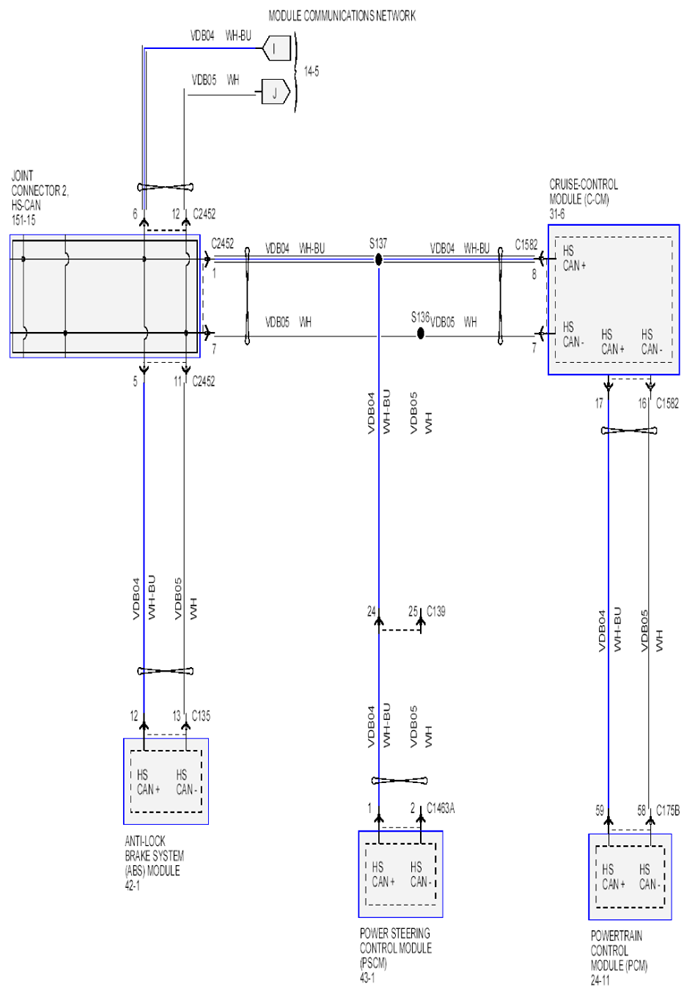

Fig 2: Module Communications Network Circuit Diagram - With Adaptive Cruise (1 Of 4)

Courtesy of FORD MOTOR CO.

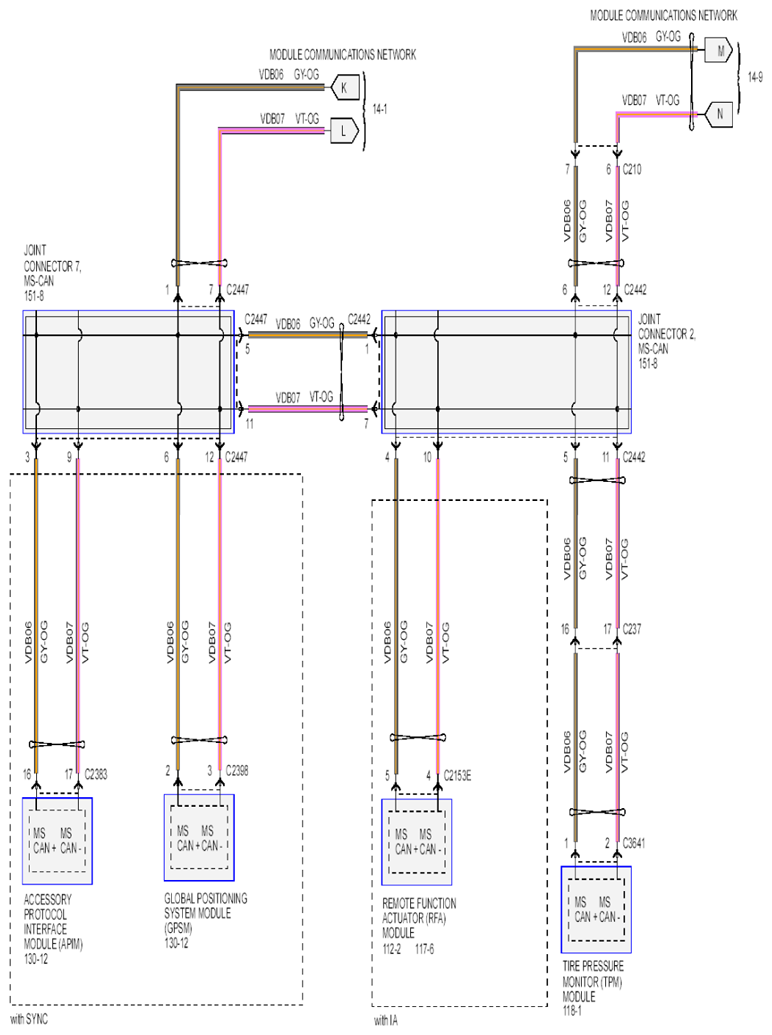

Fig 3: Module Communications Network Circuit Diagram - With Adaptive Cruise (2 Of 4)

Courtesy of FORD MOTOR CO.

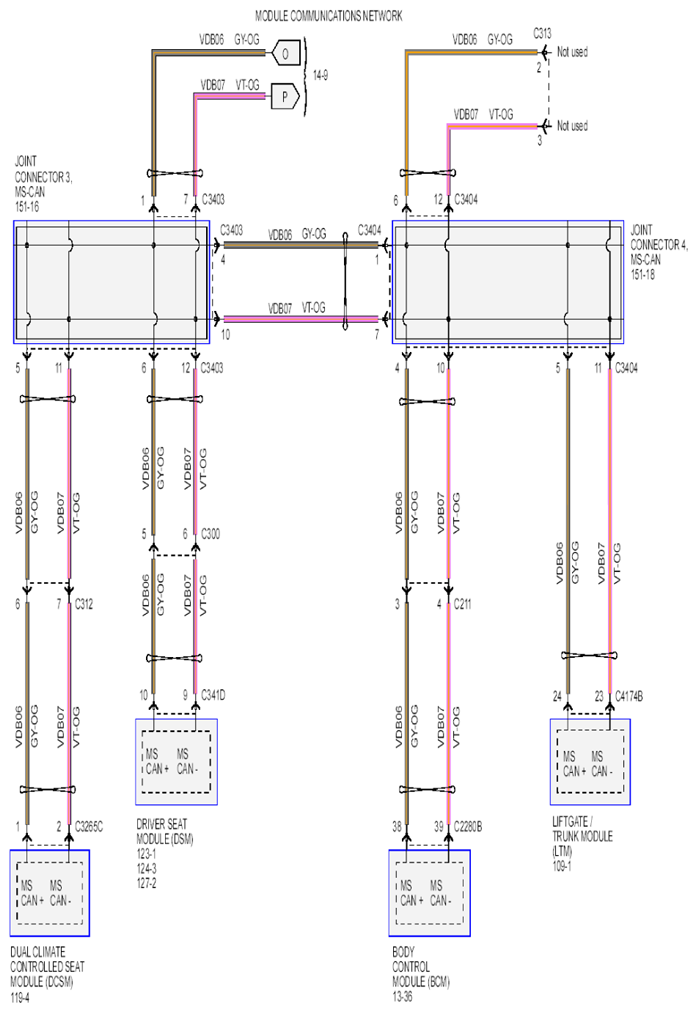

Fig 4: Module Communications Network Circuit Diagram - With Adaptive Cruise (3 Of 4)

Courtesy of FORD MOTOR CO.

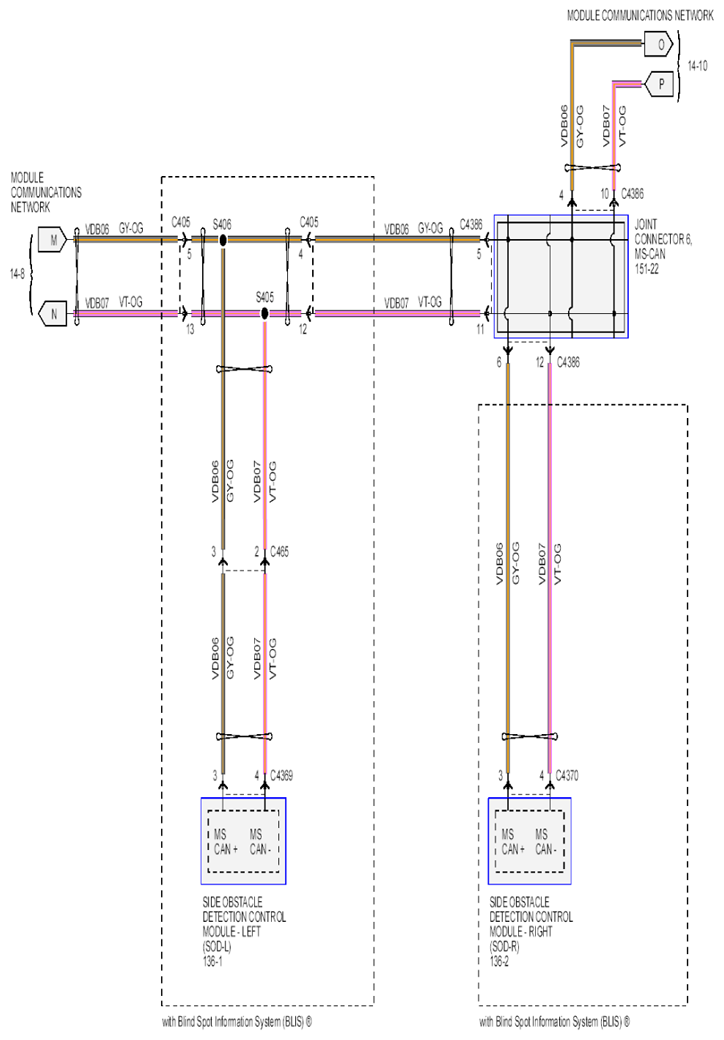

Fig 5: Module Communications Network Circuit Diagram - With Adaptive Cruise (4 Of 4)

Courtesy of FORD MOTOR CO.
