Fuse and Relay Information

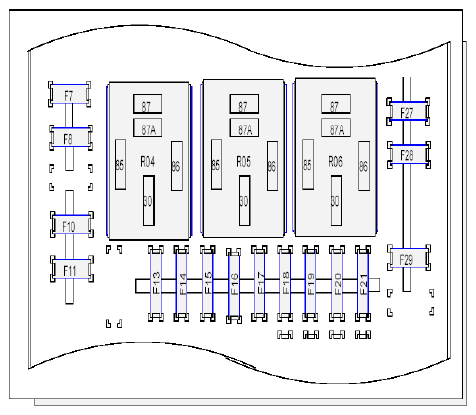

See appropriate OEM WIRING DIAGRAMS - FUSE AND RELAY INFORMATION article contains a view of the fuse/relay box in which fuses and relays are identified, numbered and named. Fuse and relay numbering and naming follow the indication of the fuse panel cover. In addition, for all removable relays, pin positions are added to illustrate proper orientation.
