Horn_Cigar lighter: Notes

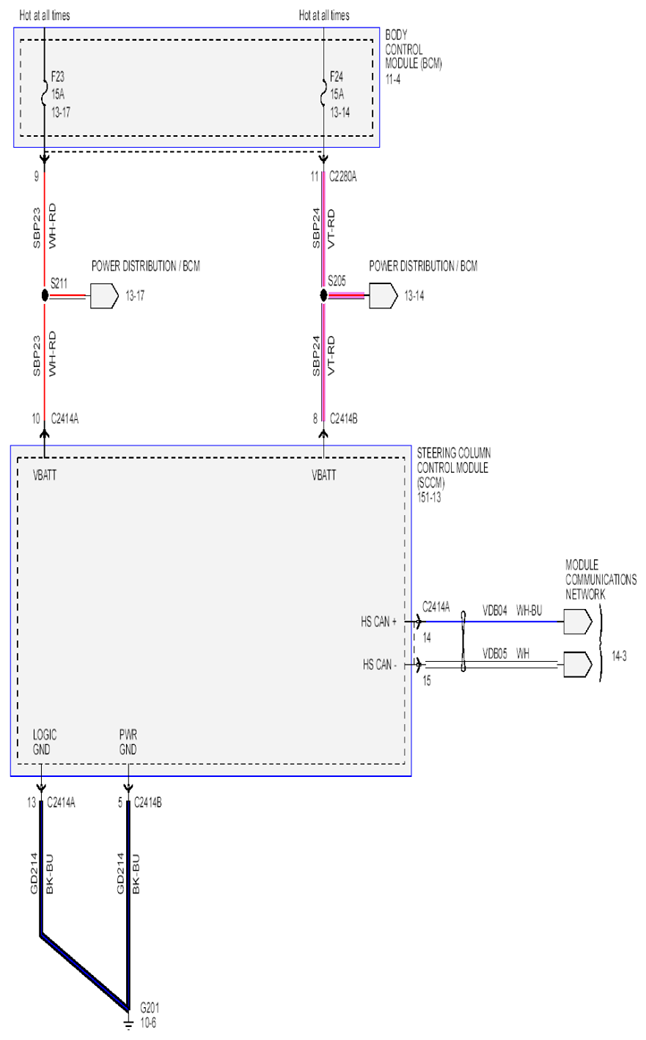

Fig 1: Horn And Cigar Lighter Circuit Diagram (1 Of 3)
G07857409Courtesy of FORD MOTOR CO.

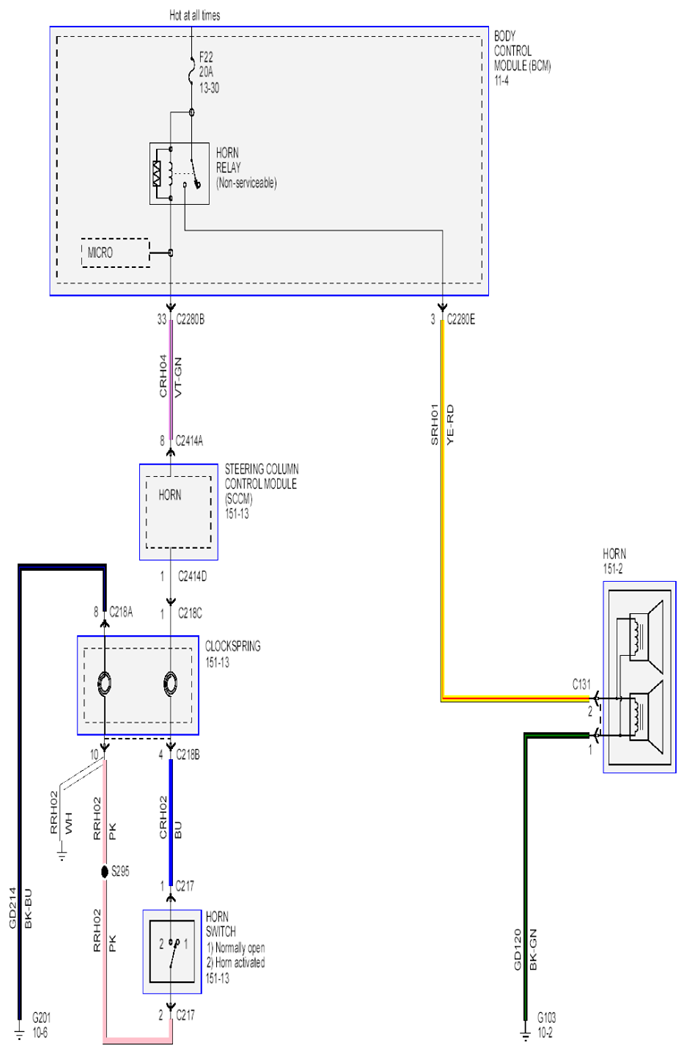

Fig 2: Horn And Cigar Lighter Circuit Diagram (2 Of 3)
G07857410Courtesy of FORD MOTOR CO.

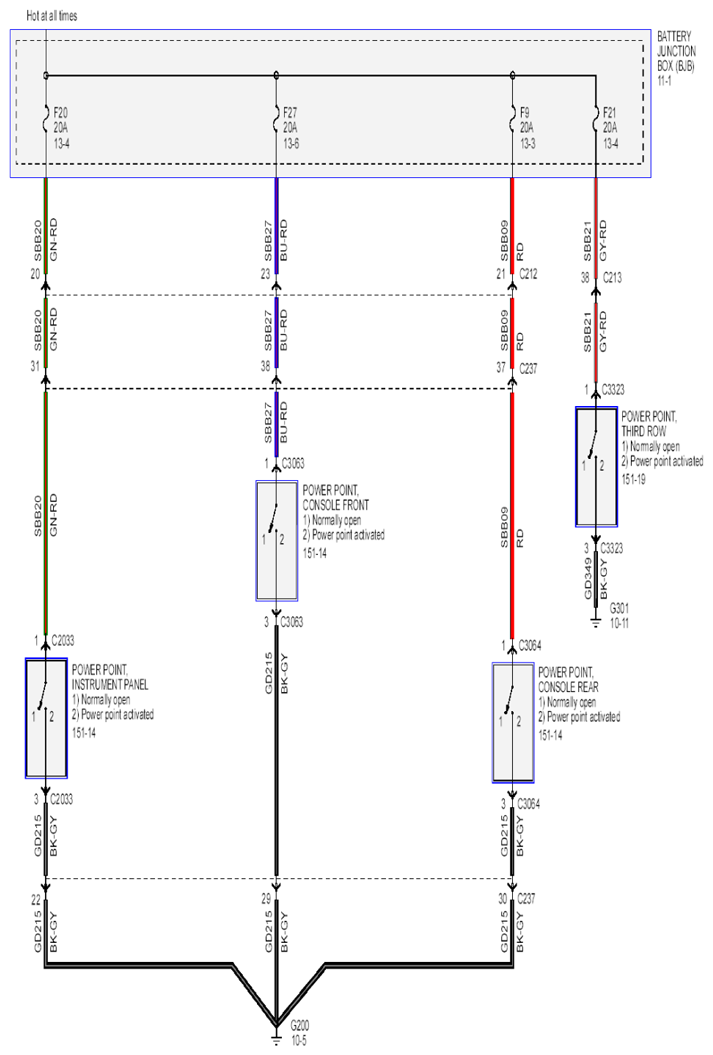

Fig 3: Horn And Cigar Lighter Circuit Diagram (3 Of 3)
G07857411Courtesy of FORD MOTOR CO.
