Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Grounds
>>
G201
OEM Wiring Diagrams: Grounds: G201

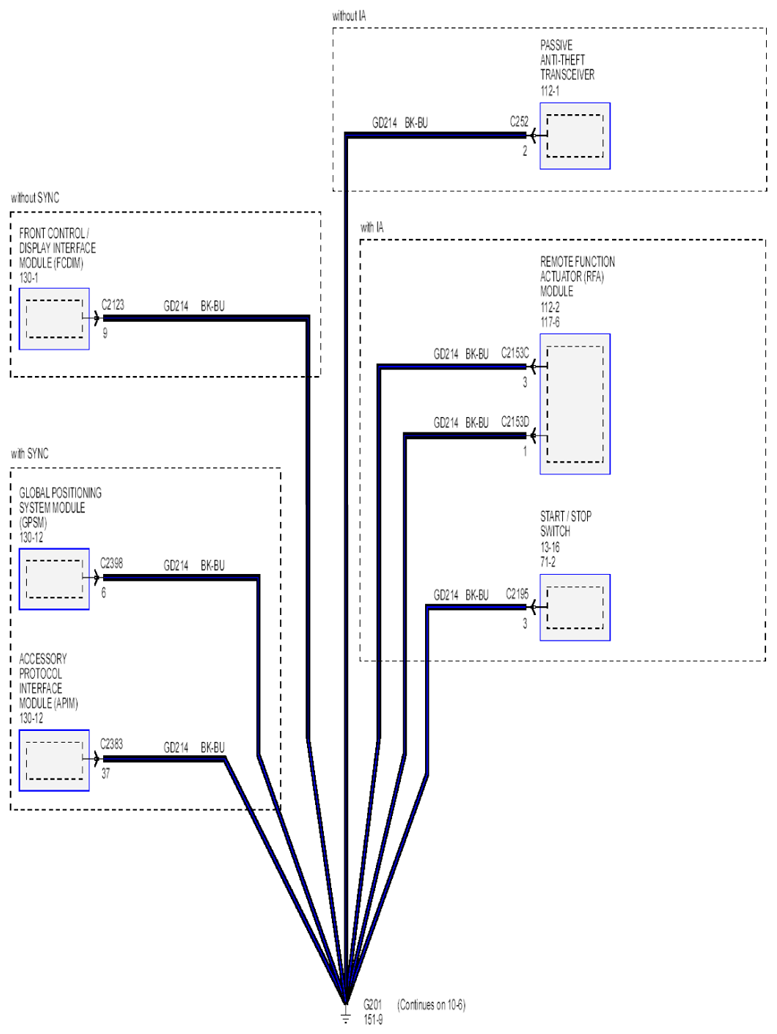

Fig 1: Ground Circuit Diagram - G201 (1 Of 2)
Courtesy of FORD MOTOR CO.

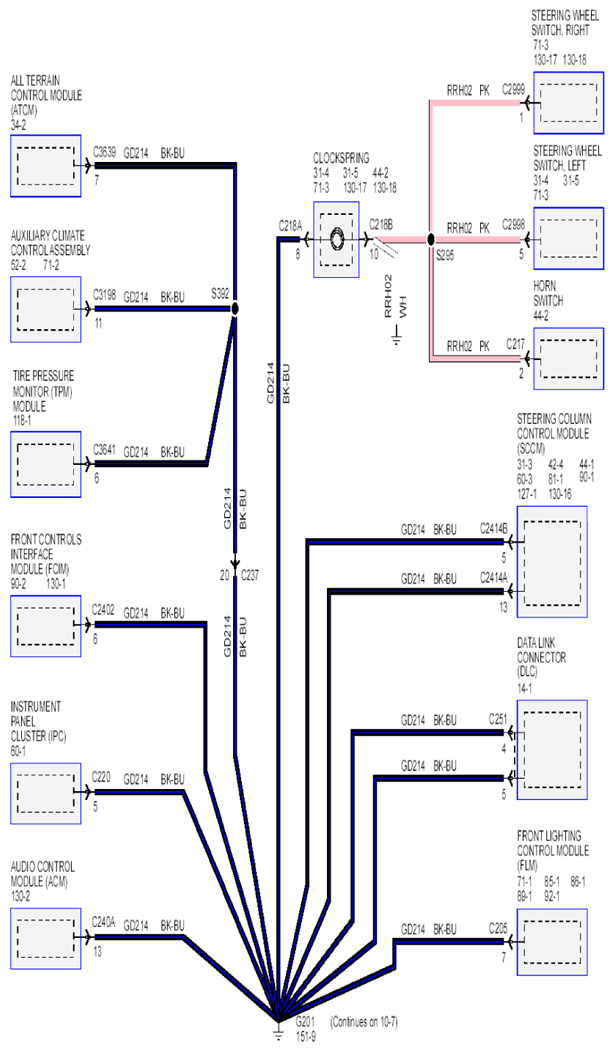

Fig 2: Ground Circuit Diagram - G201 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
