Cruise Control: Notes

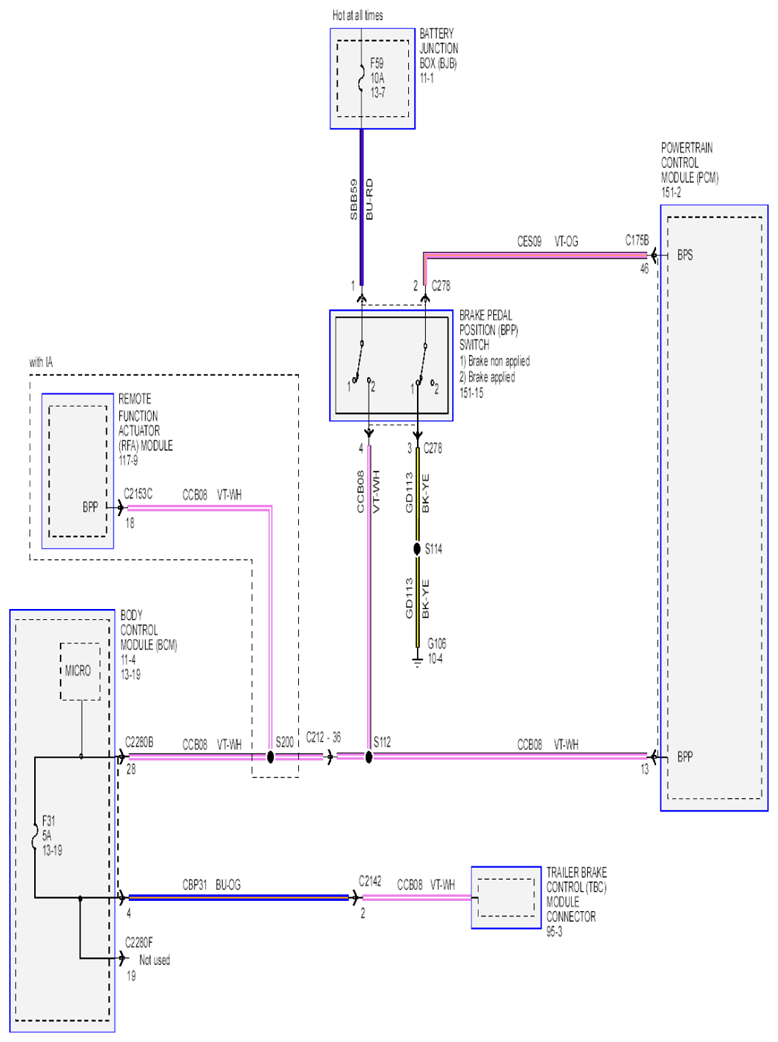

Fig 1: Cruise Control Circuit Diagram (1 Of 3)
G07857392Courtesy of FORD MOTOR CO.

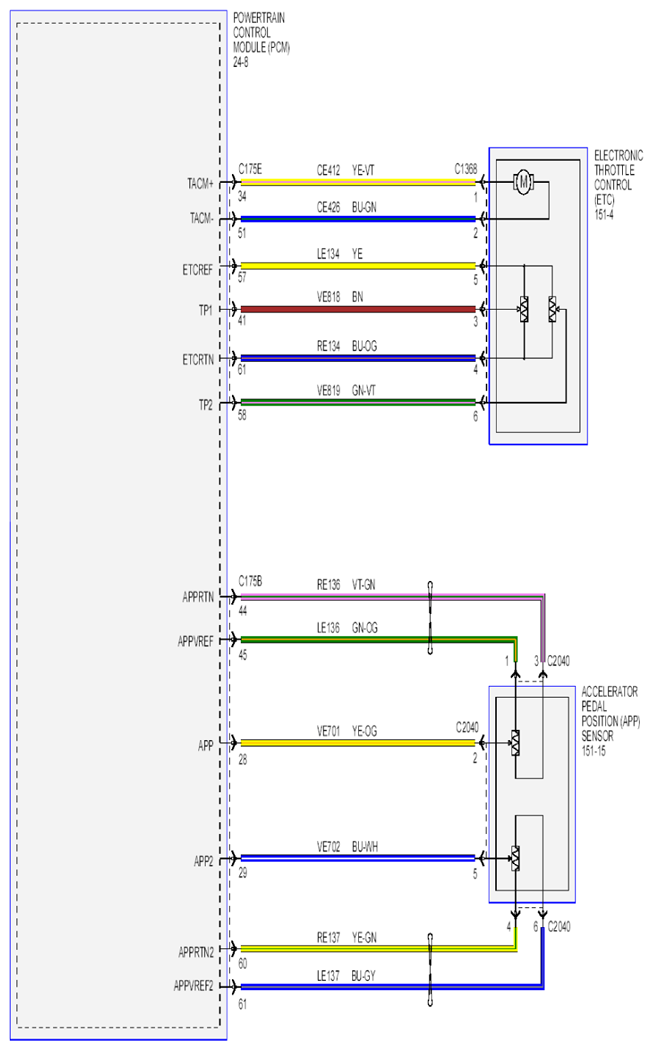

Fig 2: Cruise Control Circuit Diagram (2 Of 3)
G07857393Courtesy of FORD MOTOR CO.

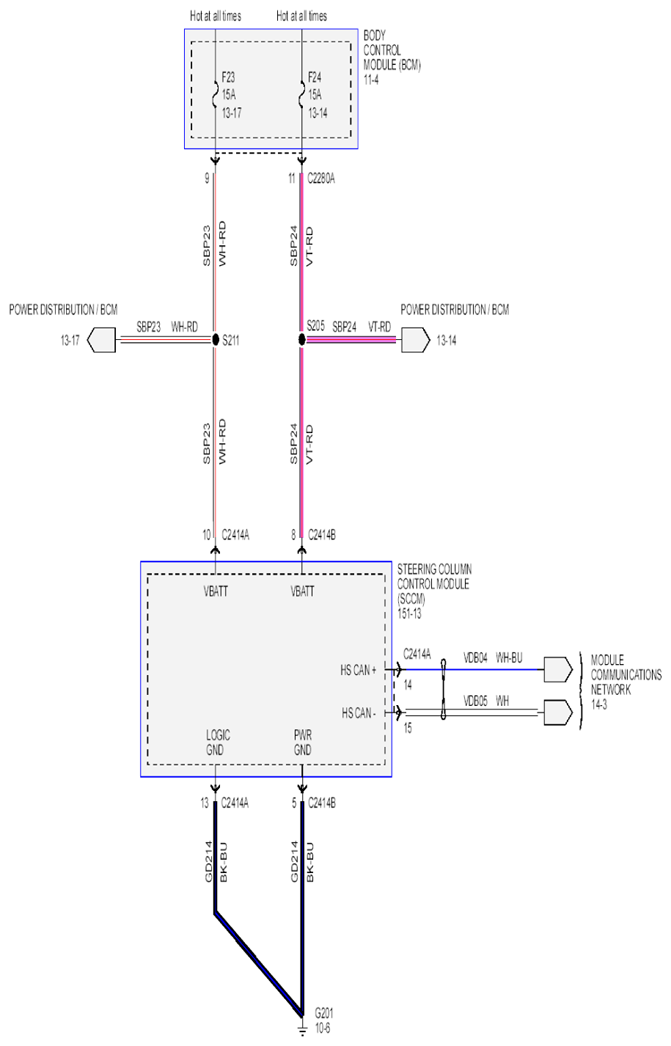

Fig 3: Cruise Control Circuit Diagram (3 Of 3)
G07857394Courtesy of FORD MOTOR CO.
