Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Audio System_Navigation
>>
With Sync
With Sync

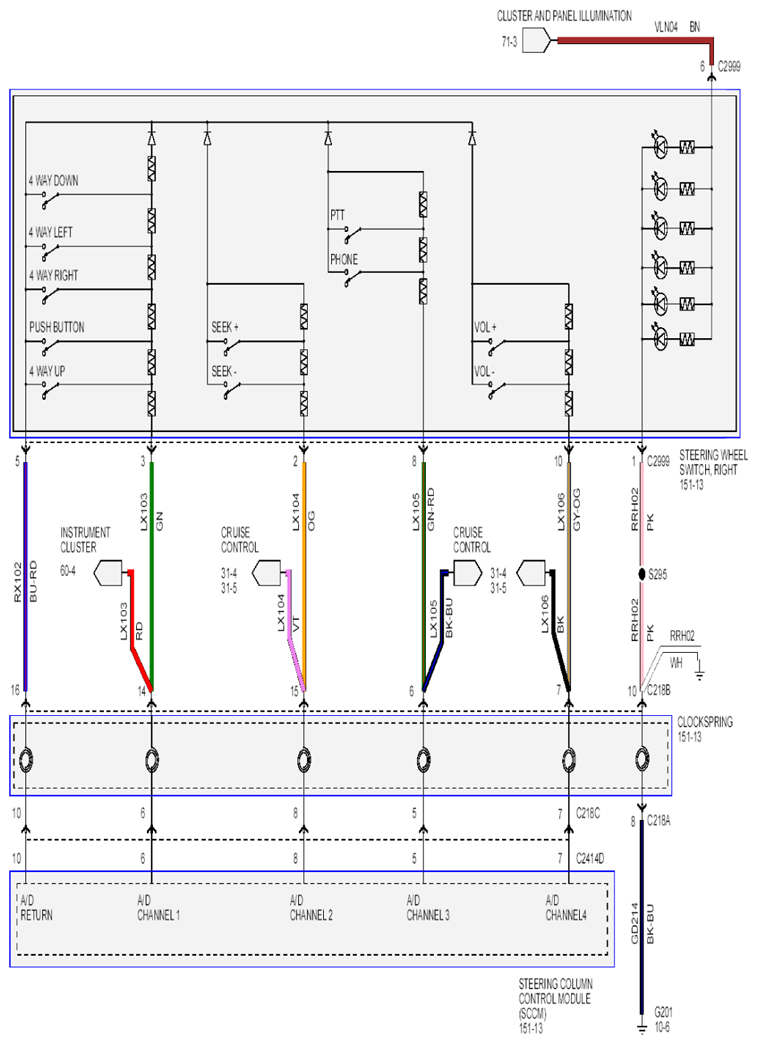

Fig 1: Audio System And Navigation Circuit Diagram - With SYNC
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
