With SONY ® Sound

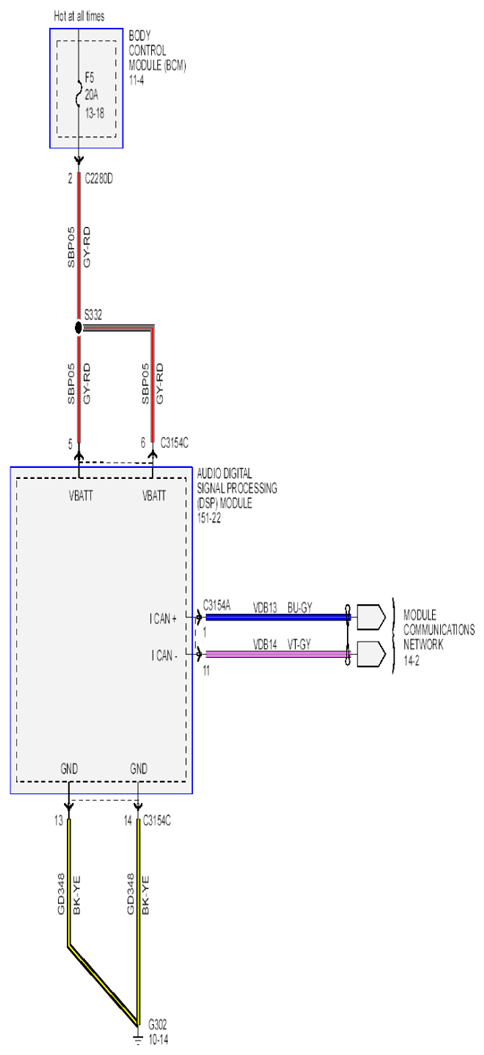

Fig 1: Audio System And Navigation Circuit Diagram - With Sony ® Sound (1 Of 4)
G07857548Courtesy of FORD MOTOR CO.

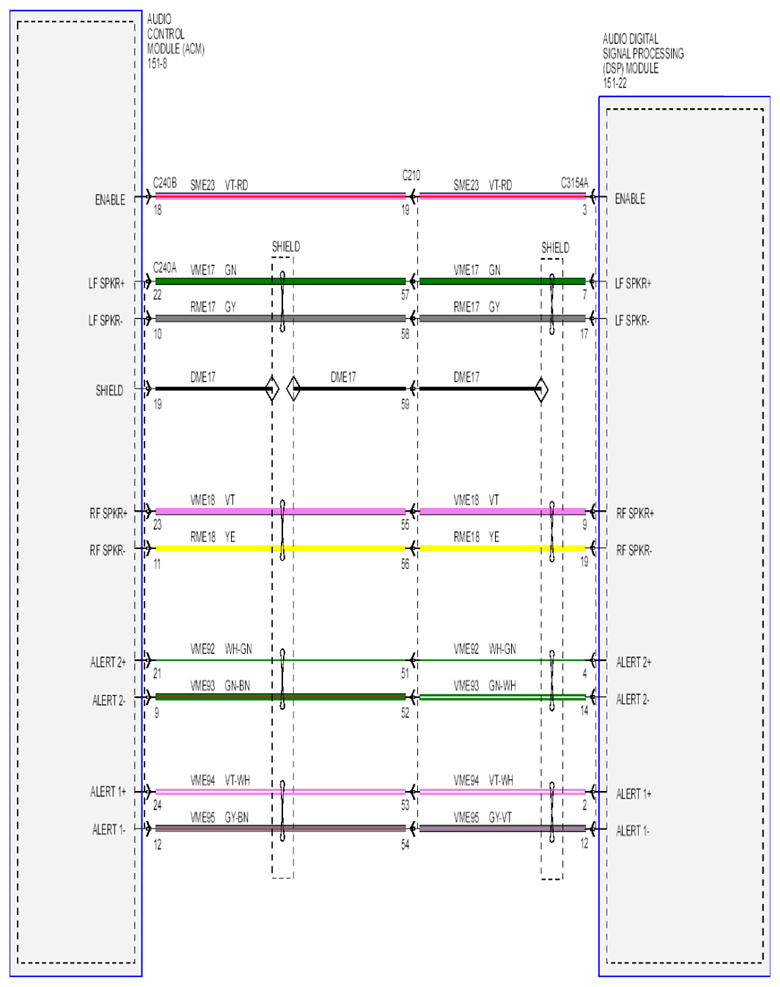

Fig 2: Audio System And Navigation Circuit Diagram - With Sony ® Sound (2 Of 4)
G07857549Courtesy of FORD MOTOR CO.

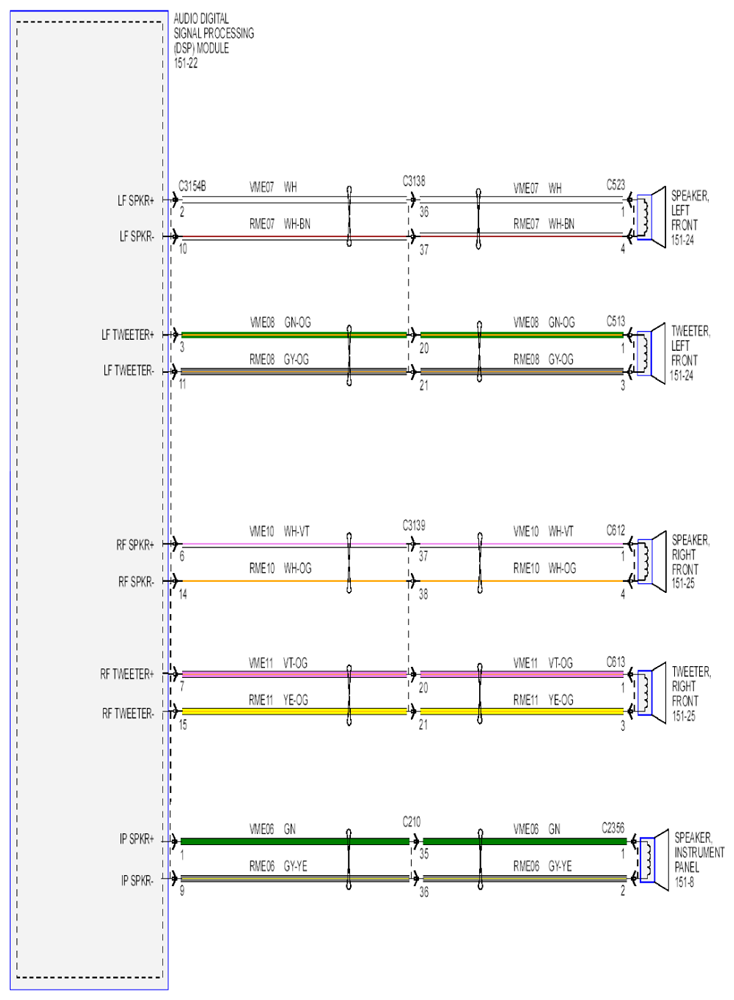

Fig 3: Audio System And Navigation Circuit Diagram - With Sony ® Sound (3 Of 4)
G07857550Courtesy of FORD MOTOR CO.

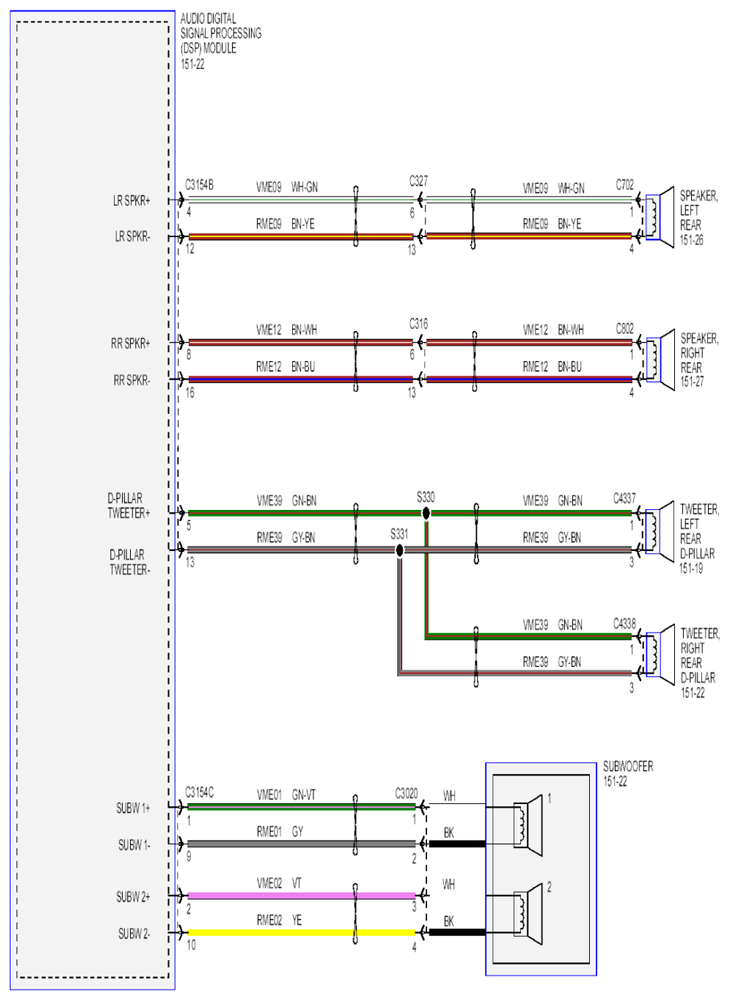

Fig 4: Audio System And Navigation Circuit Diagram - With Sony ® Sound (4 Of 4)
G07857551Courtesy of FORD MOTOR CO.
