Home >> Ford >> 2011 >> Explorer Base, AWD, 6F55 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Wiring Diagrams >> Audio System_Navigation >> Sync

Audio System_Navigation: Sync

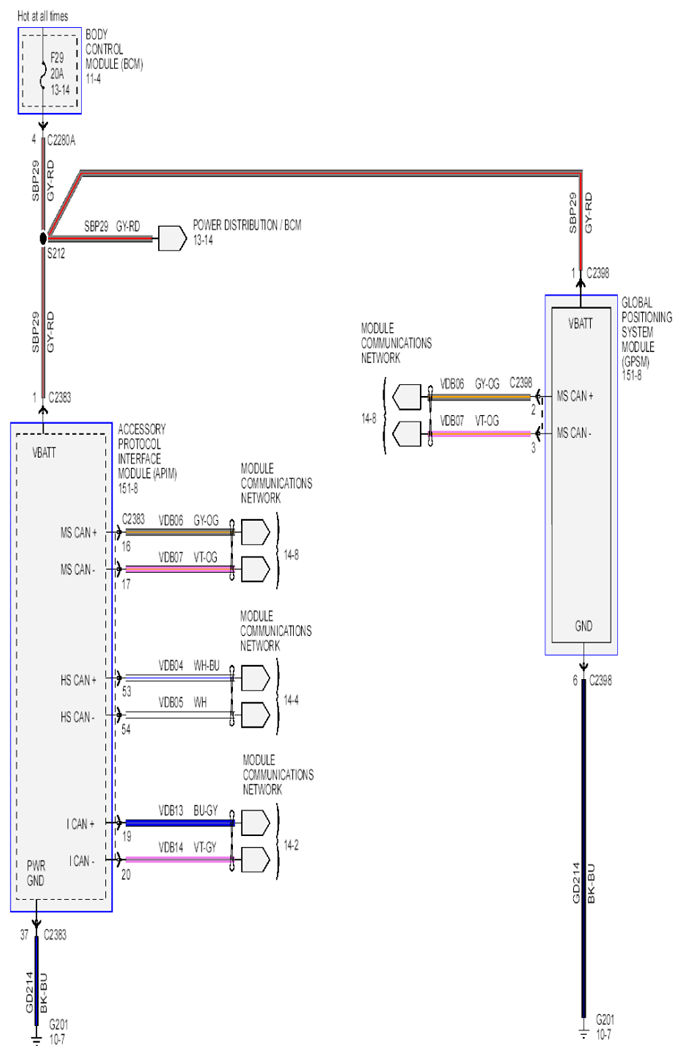

Fig 1: Audio System And Navigation Circuit Diagram - SYNC (1 Of 5)
G07857552Courtesy of FORD MOTOR CO.

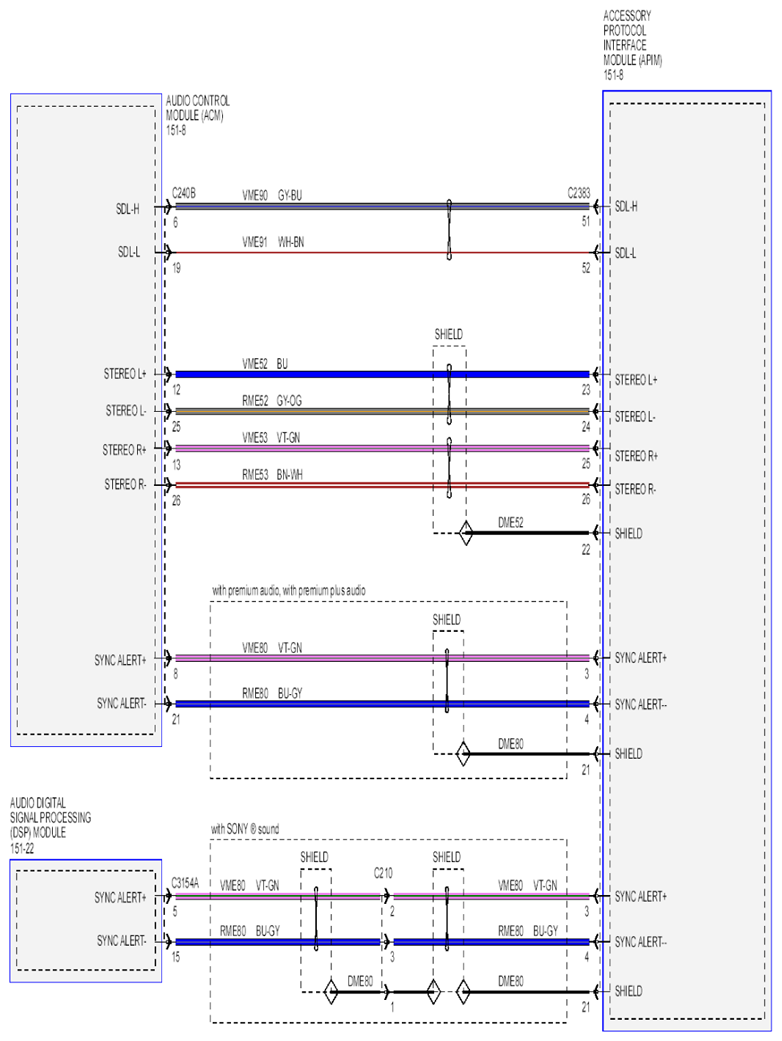

Fig 2: Audio System And Navigation Circuit Diagram - SYNC (2 Of 5)
G07857553Courtesy of FORD MOTOR CO.

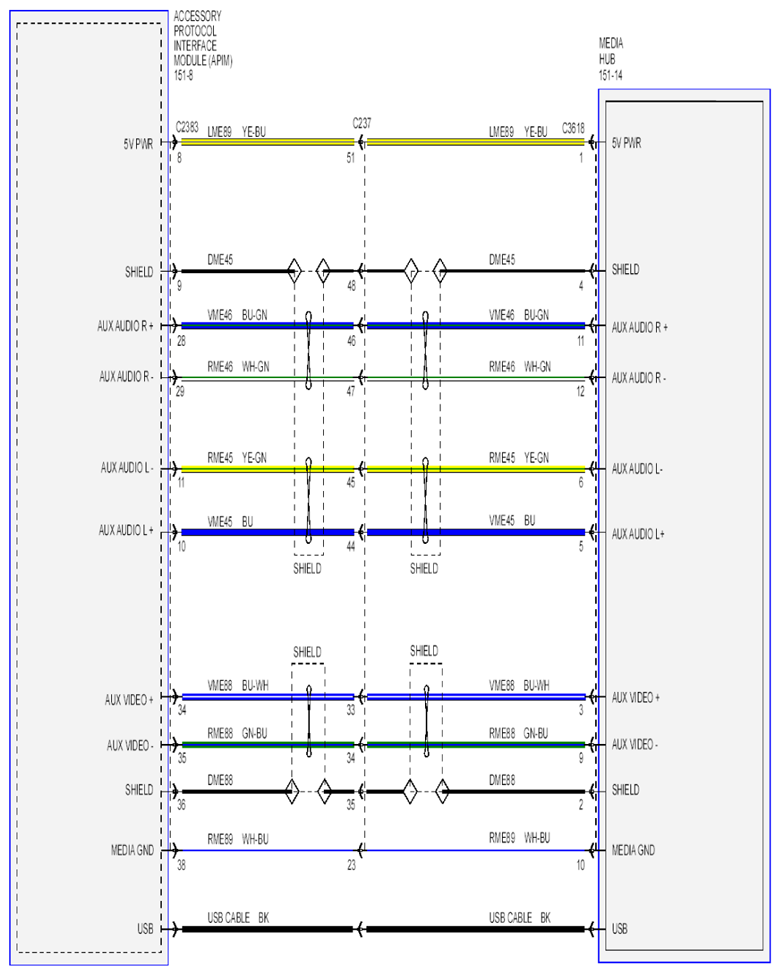

Fig 3: Audio System And Navigation Circuit Diagram - SYNC (3 Of 5)
G07857554Courtesy of FORD MOTOR CO.

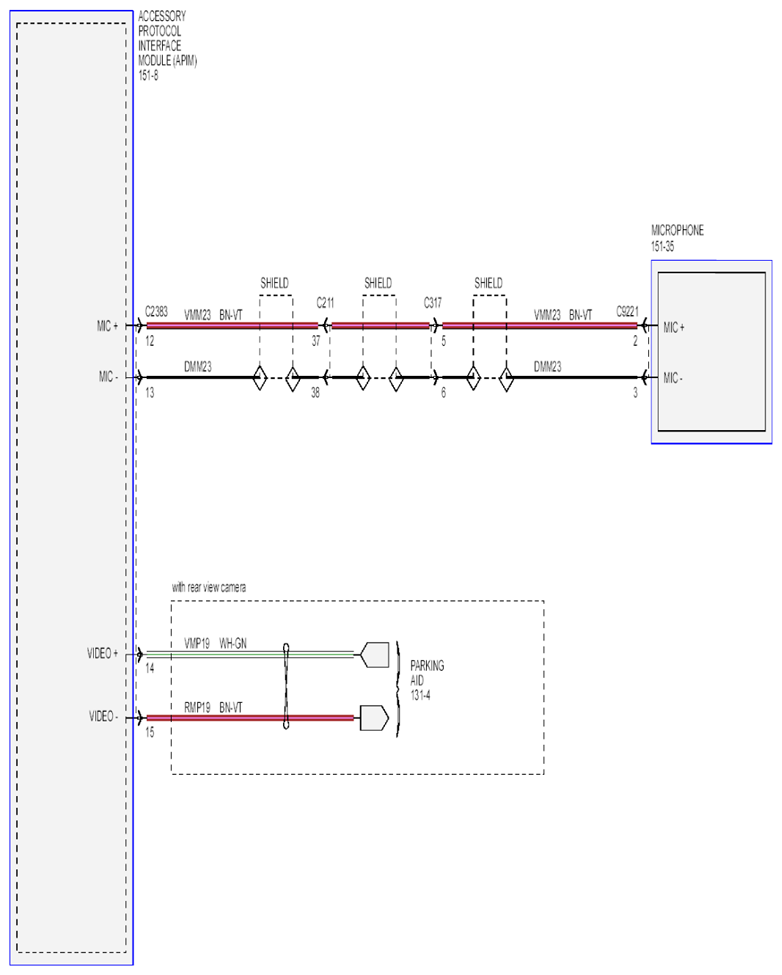

Fig 4: Audio System And Navigation Circuit Diagram - SYNC (4 Of 5)
G07857555Courtesy of FORD MOTOR CO.

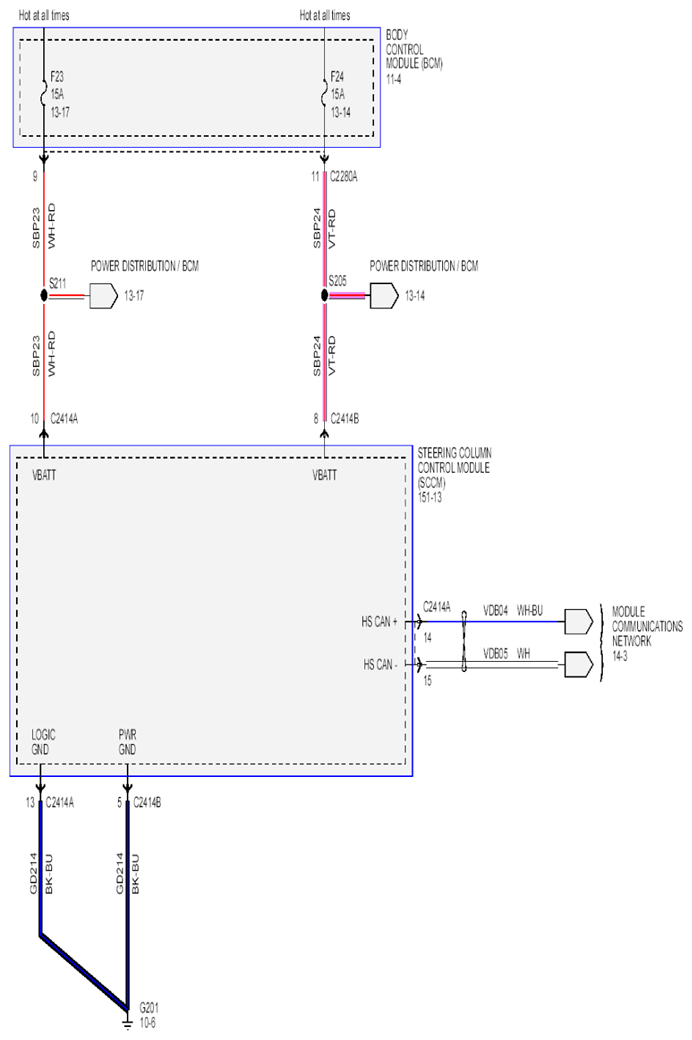

Fig 5: Audio System And Navigation Circuit Diagram - SYNC (5 Of 5)
G07857556Courtesy of FORD MOTOR CO.
