Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Audio System_Navigation
>>
Premium Plus Audio
Premium Plus Audio

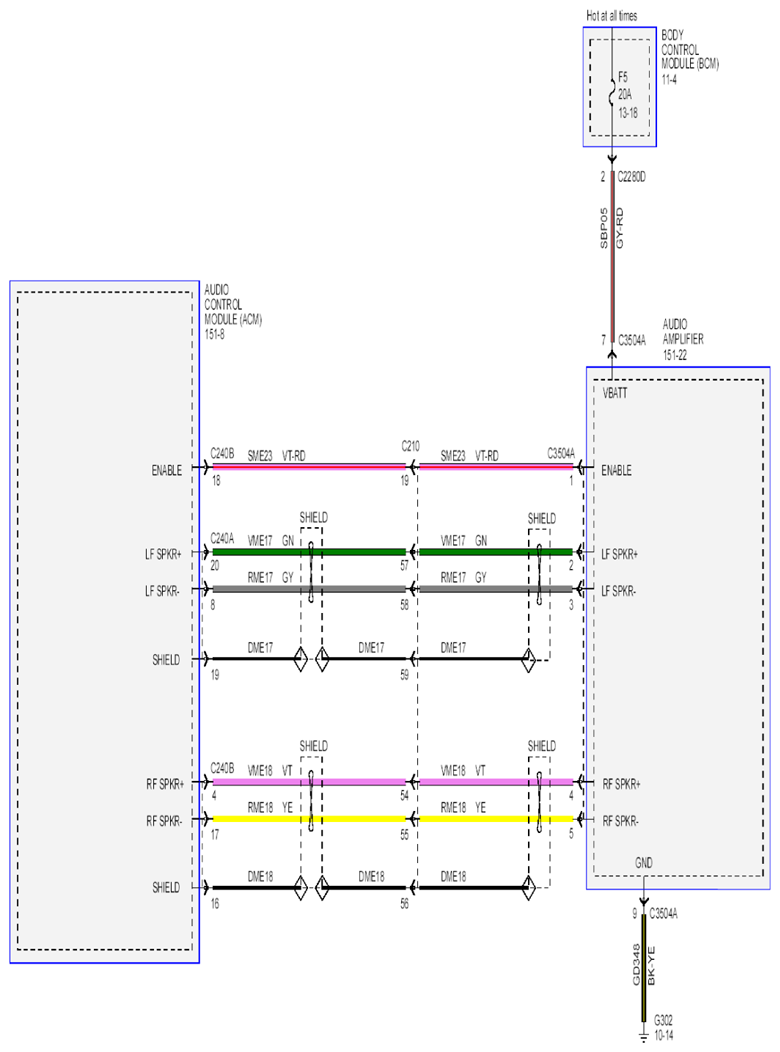

Fig 1: Audio System And Navigation Circuit Diagram - Premium Plus Audio (1 Of 3)
Courtesy of FORD MOTOR CO.

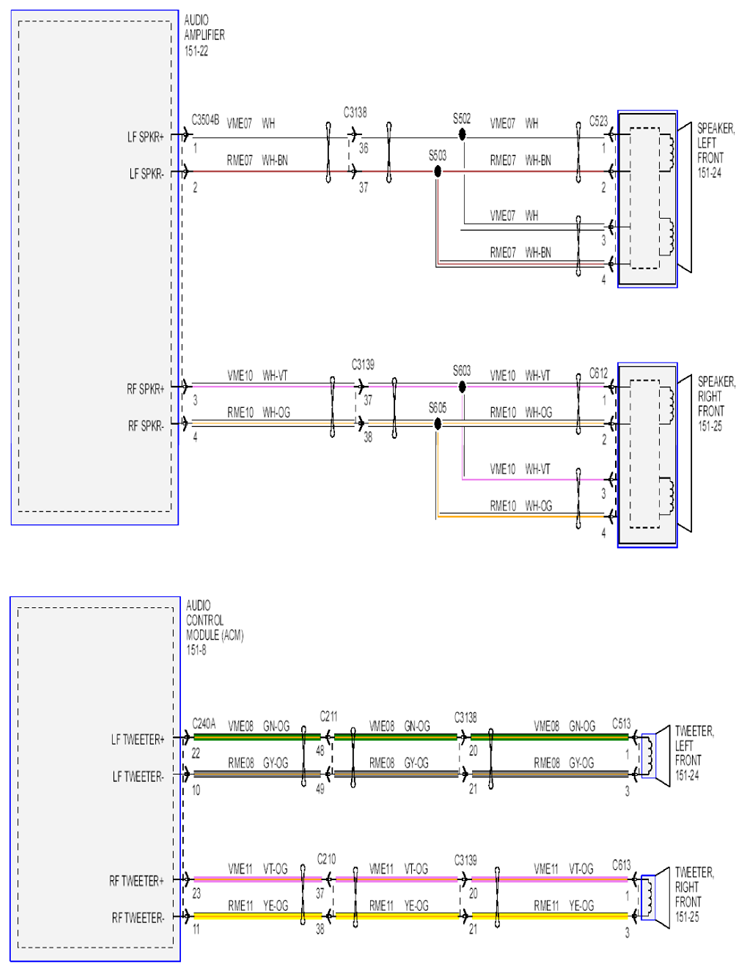

Fig 2: Audio System And Navigation Circuit Diagram - Premium Plus Audio (2 Of 3)
Courtesy of FORD MOTOR CO.

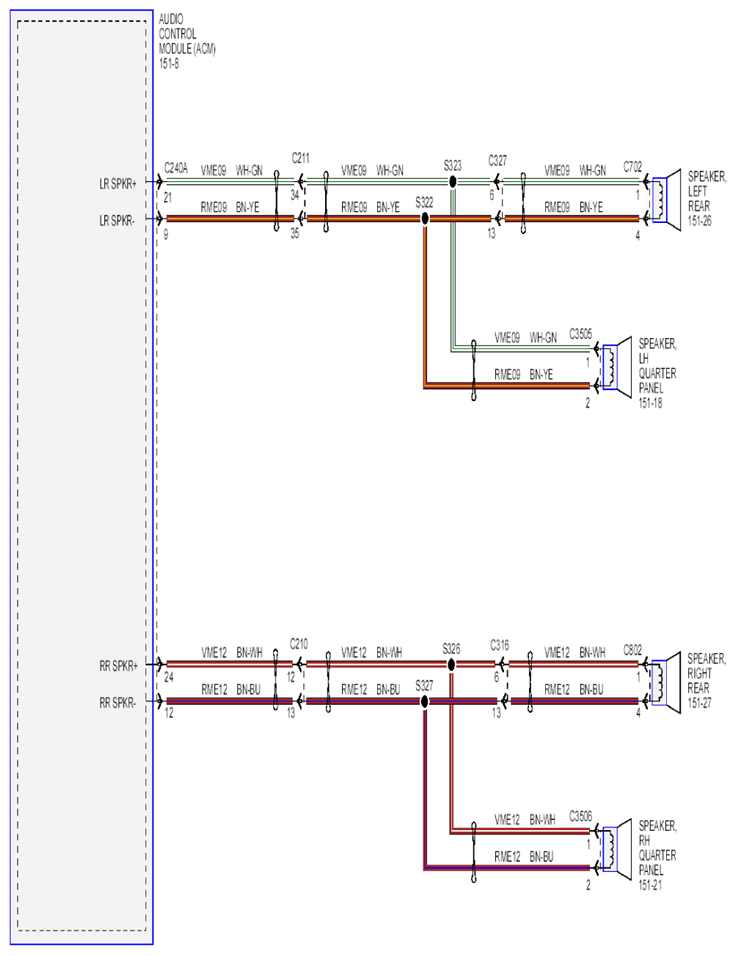

Fig 3: Audio System And Navigation Circuit Diagram - Premium Plus Audio (3 Of 3)
Courtesy of FORD MOTOR CO.
