Premium Audio
Premium Audio

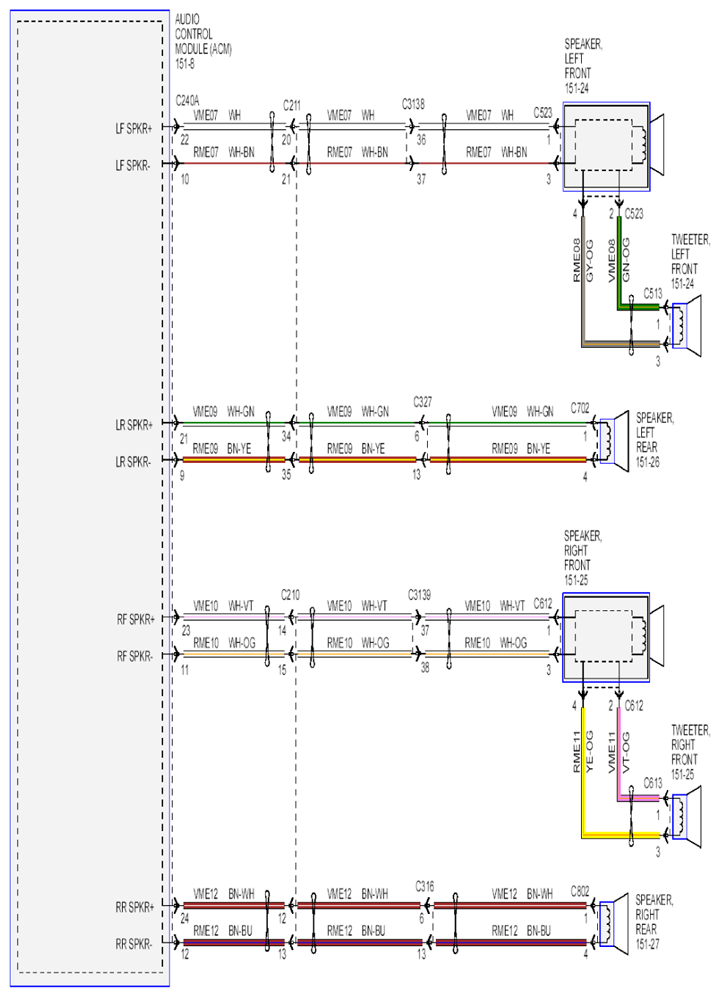

Fig 1: Audio System And Navigation Circuit Diagram - Premium Audio
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
