All Wheel Drive (AWD): Notes

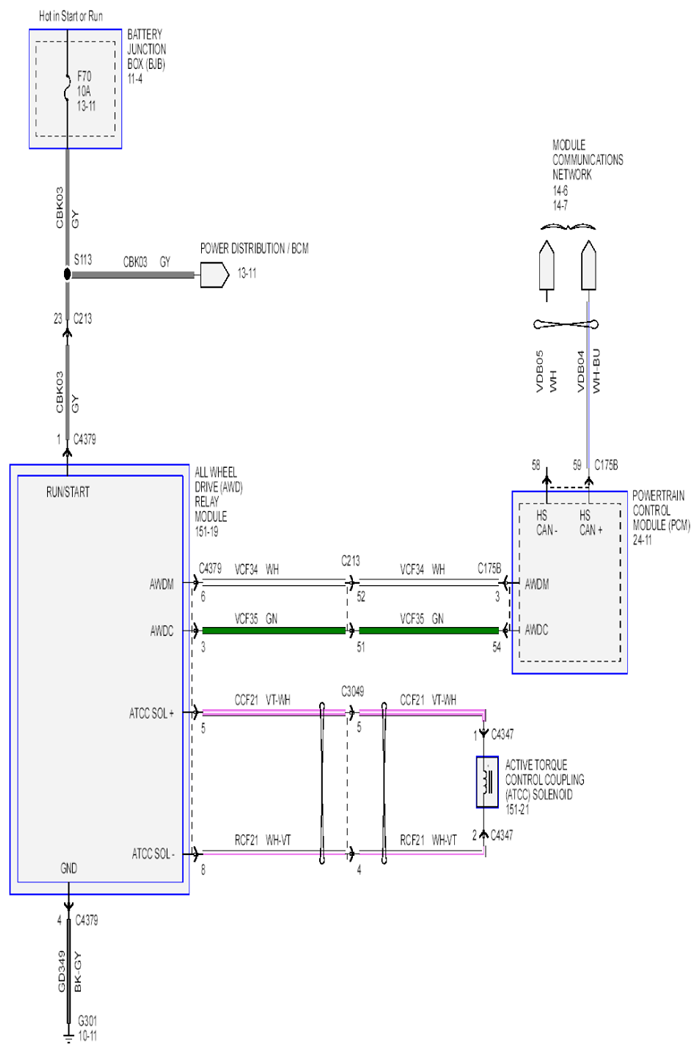

Fig 1: All Wheel Drive Circuit Diagram (AWD)

G07857399

Courtesy of FORD MOTOR CO.
