Liftgate Rear Control Switch Connector - C4333

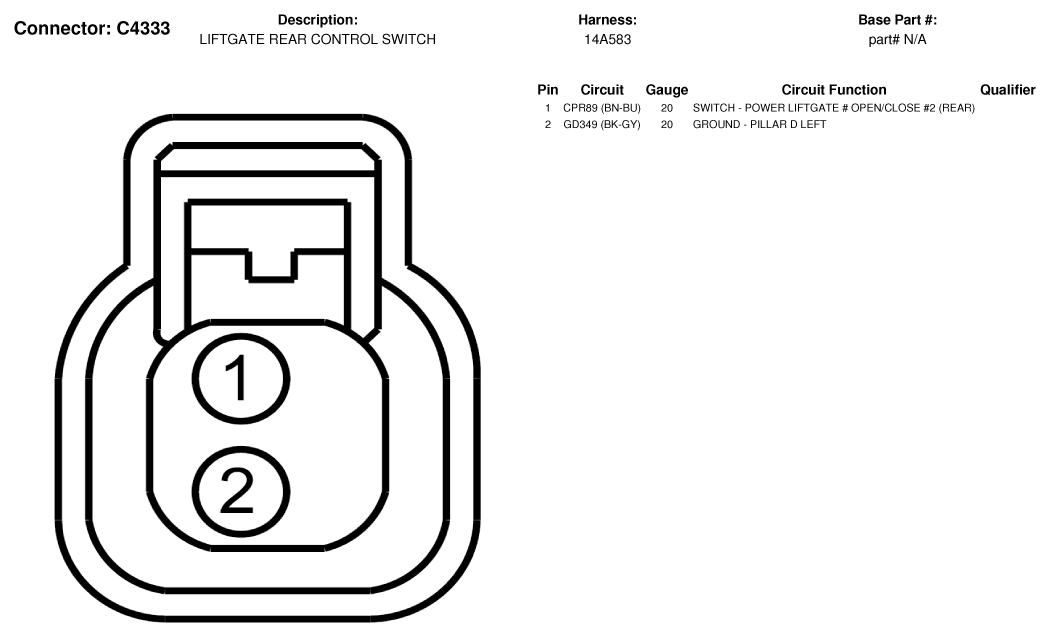

Fig 1: Liftgate Rear Control Switch Connector End View (C4333)

G07328242

Courtesy of FORD MOTOR CO.
