Head Up Display Module Connector - C2395

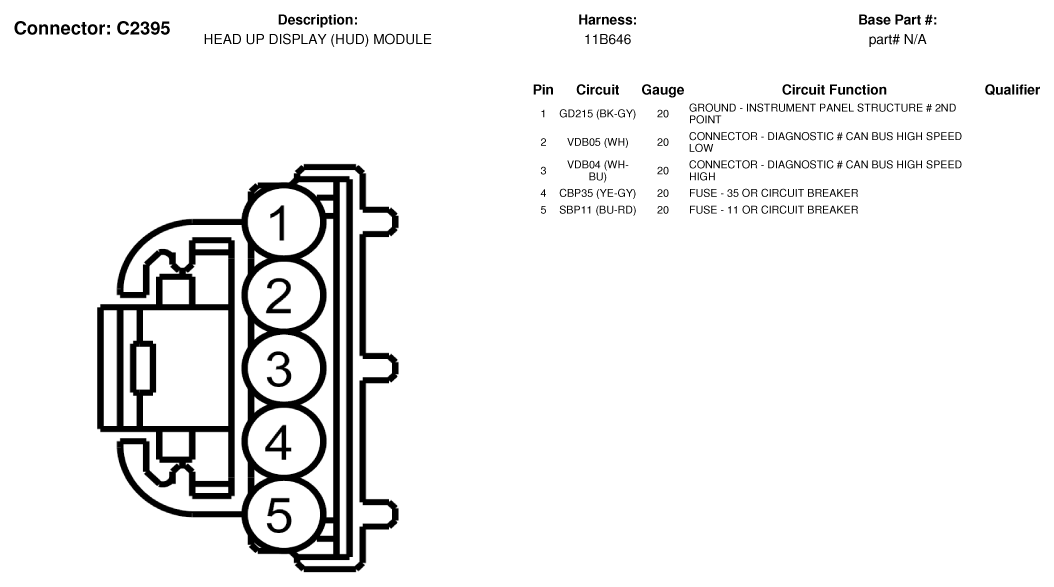

Fig 1: Head Up Display Module Connector End View (C2395)

G07328119

Courtesy of FORD MOTOR CO.
