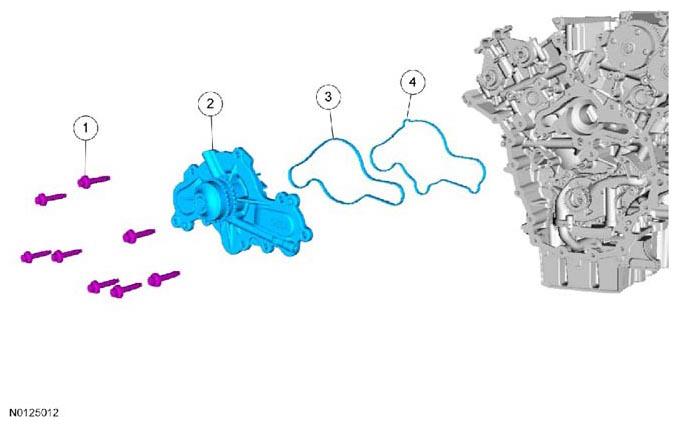

Exploded View
Courtesy of FORD MOTOR CO. COOLANT PUMP PARTS DESCRIPTION CHART
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
W503278 |
Coolant pump bolt (8 required) |
- |
- |
- |
| 2 |
8501 |
Coolant pump |
- |
- |
- |
| 3 |
8507 |
Coolant pump gasket |
- |
- |
- |
| 4 |
8507 |
Coolant pump gasket |
- |
- |
- |
