High Current Battery Junction Box (BJB)
CAUTION:
When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.
NOTE:
For component location, see
OEM COMPONENT LOCATIONS
article.

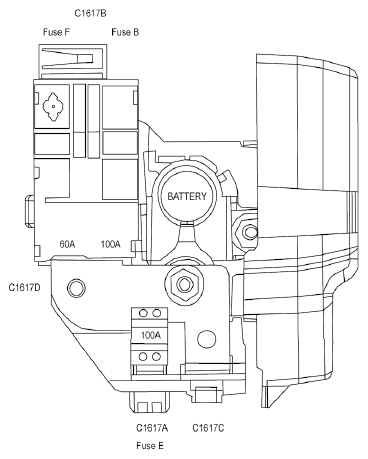

HIGH CURRENT BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuit protected |
|---|---|---|
| B | 100 | Body Control Module (BCM) |
| E | 100 | Power Steering Control Module (PSCM) |
| F | 60 | Engine Cooling fan motor |
