Air Suspension Compressor Drier: Notes

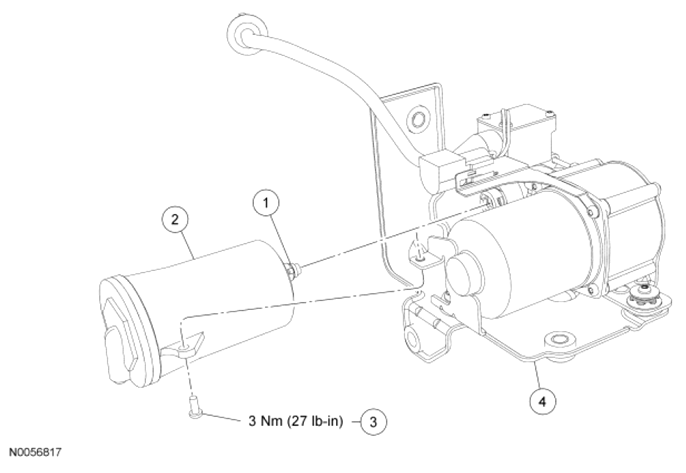

Fig 1: Locating Air Suspension Compressor Drier Components With Torque Specification
G07457672Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - O-ring (part of 5346)
2 5346 Compressor drier
3 - Compressor drier screw (part of 5346)
4 3B484 Compressor and bracket assembly
