Piston Diameter
NOTE:
Refer to the appropriate ENGINE MECHANICAL - 5.4L (3V)
for the specification.

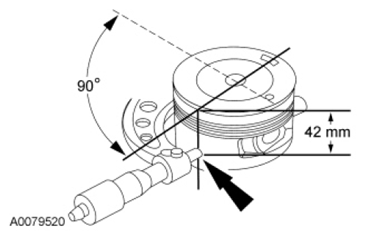

- Measure the piston diameter 90 degrees from the piston pin and 42 mm (1.65 in) down from the top of the piston at the point indicated.
