Multifunction Switch Connectors - C202

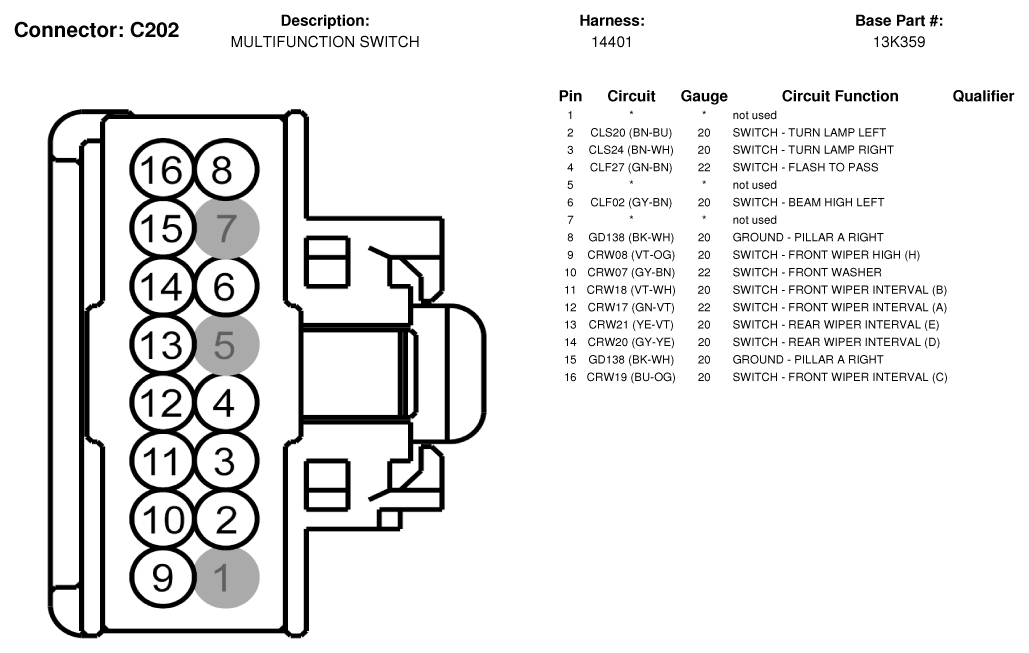

Fig 1: Multifunction Switch Connector End View (C202)

G07327448

Courtesy of FORD MOTOR CO.
