Steering Wheel Rotation Sensor: Notes

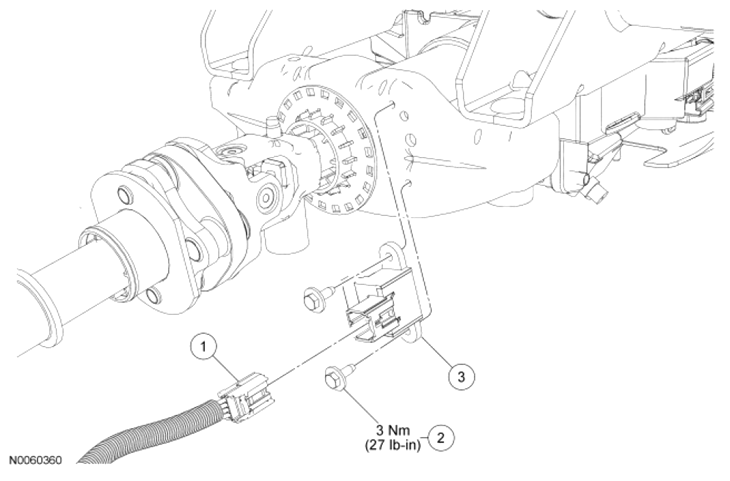

Fig 1: Exploded View Of Steering Wheel Rotation Sensor With Torque Specifications
G07457834Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Steering wheel rotation sensor electrical connector (part of 14489)
2 N802141 Steering wheel rotation sensor bolt (2 required)
3 3F818 Steering wheel rotation sensor
