Air Suspension Compressor: Notes

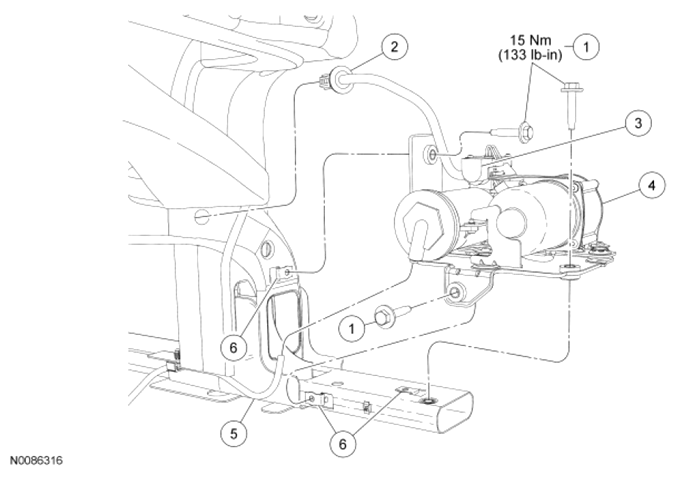

Fig 1: Exploded View Of Air Suspension Compressor Components With Torque Specification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W505436	Compressor bolts (3 required)
2	3D002	Compressor air intake hose
3	-	Compressor electrical connector (part of 14A464)
4	5319	Compressor and bracket assembly
5	5A897	Air line
6	W520823	Clip nuts (3 required)
