Inner Tie Rod: Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

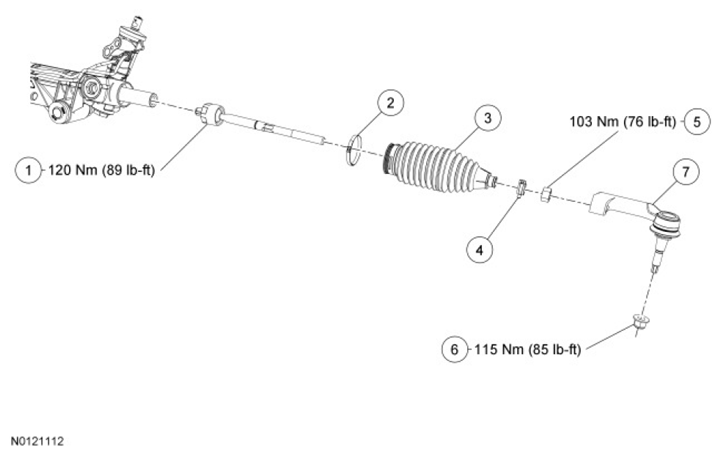

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3280 | Inner tie rod |
| 2 | - | Inner bellows boot clamp (part of 3332 service kit) |
| 3 | - | Steering gear bellows boot (part of 3332 service kit) |
| 4 | - | Outer bellows boot clamp (part of 3332 service kit) |
| 5 | W712367 | Tie-rod jam nut |
| 6 | W520215 | Outer tie-rod end nut |
| 7 | 3A130 | Outer tie-rod end |
