Steering Position Sensor Connector - C226

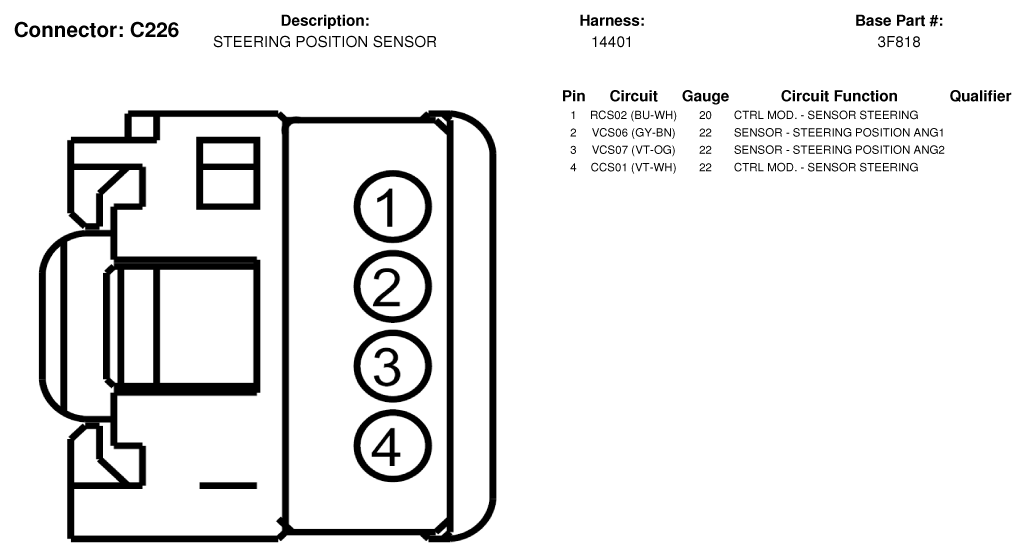

Fig 1: Steering Position Sensor Connector End View (C226)

G07327464

Courtesy of FORD MOTOR CO.
