Steering Column Position Switch Connector - C2250

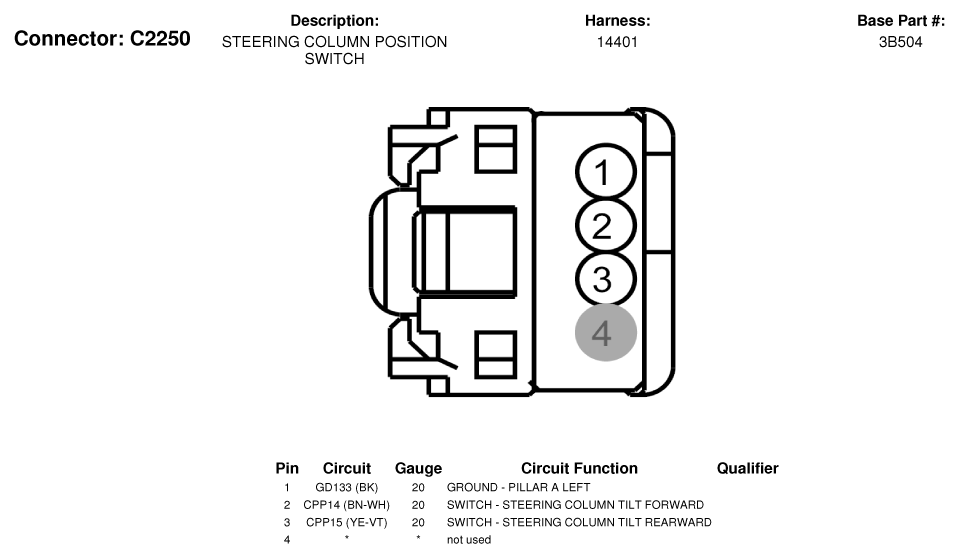

Fig 1: Steering Column Position Switch Connector End View (C2250)

G07327669

Courtesy of FORD MOTOR CO.
