Knock Sensor 1 Connector - C109

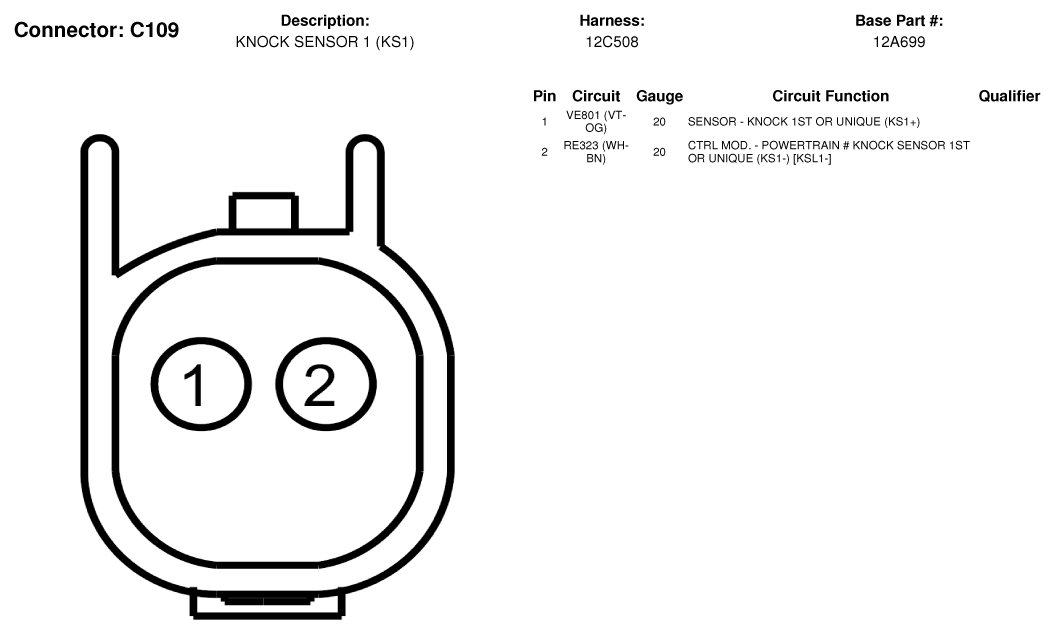

Fig 1: Knock Sensor 1 Connector End View (C109)

G07327392

Courtesy of FORD MOTOR CO.
