Front Interior Lamp/ Map Lamp Assembly Connector - C929

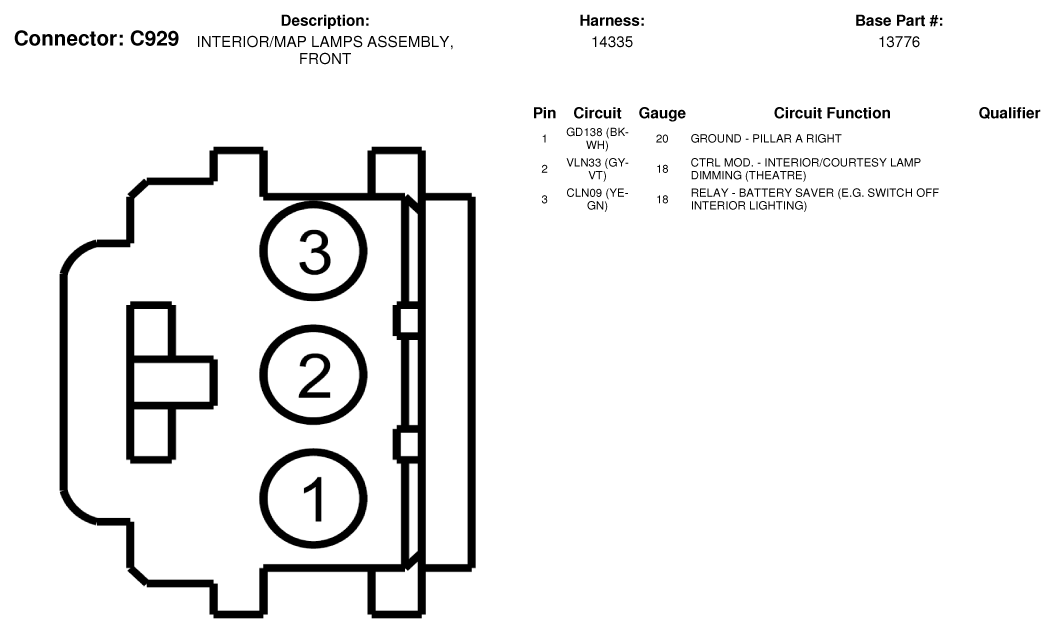

Fig 1: Front Interior Lamp/ Map Lamp Assembly Connector End View (C929)

G07327605

Courtesy of FORD MOTOR CO.
