Home >> Ford >> 2011 >> Expedition EL RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Console 2 Power Point Connector - C3064

Console 2 Power Point Connector - C3064

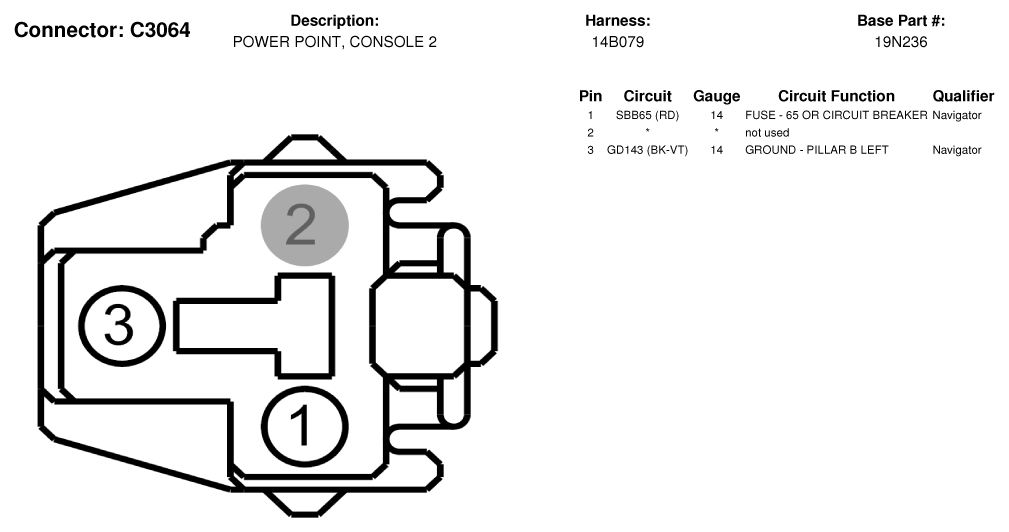

Fig 1: Console 2 Power Point Connector End View (C3064)

G07327719

Courtesy of FORD MOTOR CO.
