Console 1 Power Point Connector - C3063

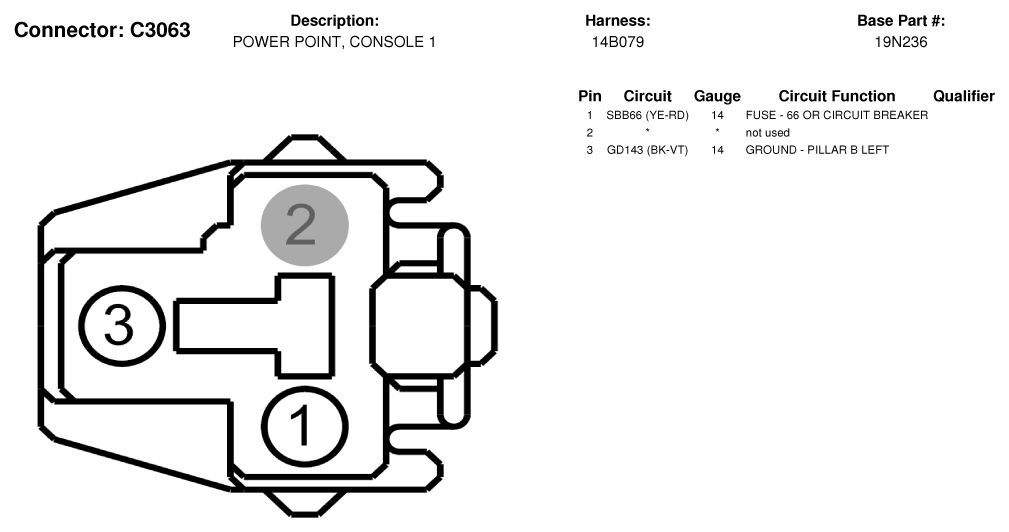

Fig 1: Console 1 Power Point Connector End View (C3063)

G07327718

Courtesy of FORD MOTOR CO.
