Brake Shift Interlock Connector - C2008

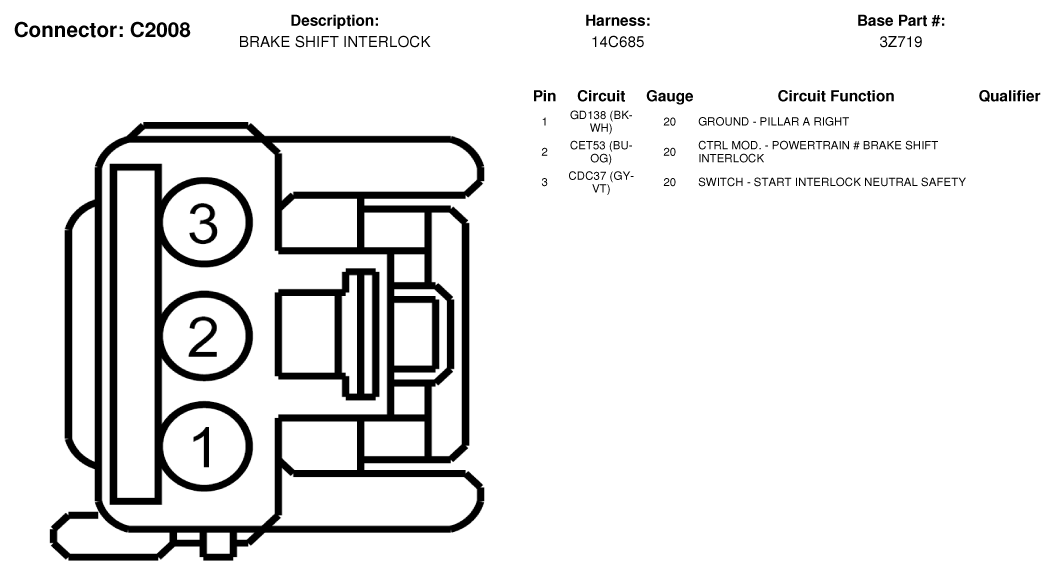

Fig 1: Brake Shift Interlock Connector End View (C2008)

G07327649

Courtesy of FORD MOTOR CO.
