Seat control switch, 6-way - Right: Schematic

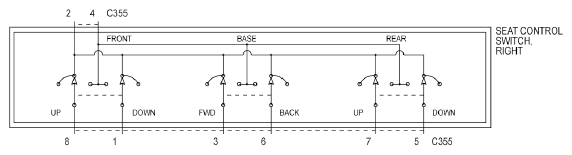

Fig 1: Seat Control Switch, 6-Way (Right) - Schematic

G07327349

Courtesy of FORD MOTOR CO.
