Minimum Detectable Object Locations (Front Sensors)

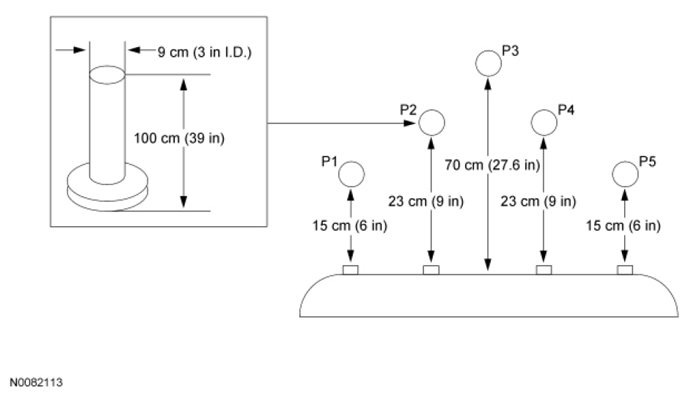

Fig 1: Identifying Minimum Detectable Object Locations (Front Sensors)

G07456726

Courtesy of FORD MOTOR CO.
