Side Air Bag Module: Notes
NOTE:

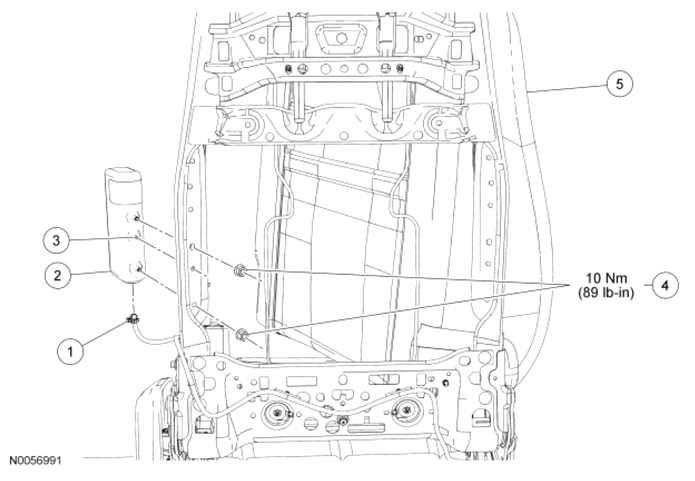

Driver seat shown in the illustration, passenger similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Side air bag module electrical connector (part of 14K155) |
| 2 | 611D10 | Side air bag module |
| 3 | - | Side air bag module locator pin (part of 611D10) |
| 4 | N620480 | Side air bag module nuts |
| 5 | - | Seat backrest trim cover and foam pad |
