Battery Cables: Notes

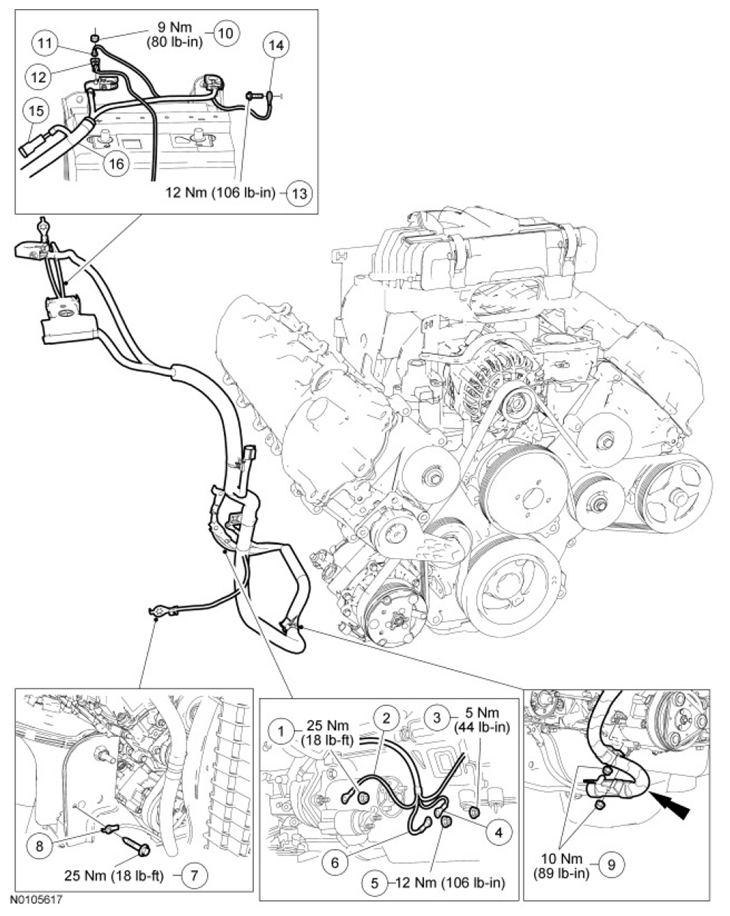

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705790 | Battery ground cable nut |
| 2 | - | Battery ground cable terminal (part of 14B060) |
| 3 | N805320 | Starter solenoid wire nut |
| 4 | - | Starter solenoid wire terminal (part of 14B060) |
| 5 | W706414 | Starter solenoid positive cable nut |
| 6 | - | Starter solenoid positive cable terminal (part of 14B060) |
| 7 | - | Battery ground cable-to-frame bolt (part of 14B060) |
| 8 | - | Battery ground cable frame terminal (part of 14B060) |
| 9 | N621906 | Battery cable harness bracket nuts (2 required) |
| 10 | W705790 | Generator harness terminal/Battery Junction Box (BJB) cable nut |
| 11 | - | CJB cable terminal (part of 14300) |
| 12 | - | Generator harness terminal (part of 14305) |
| 13 | W713560 | Battery ground cable-to-cowl panel bolt |
| 14 | - | Battery ground cable-to-body terminal (part of 14B060) |
| 15 | - | Battery cable harness in-line electrical connector (part of 14B060) |
| 16 | 14B060 | Battery cable harness assembly |
