Fuel Pump Module Connector - C433

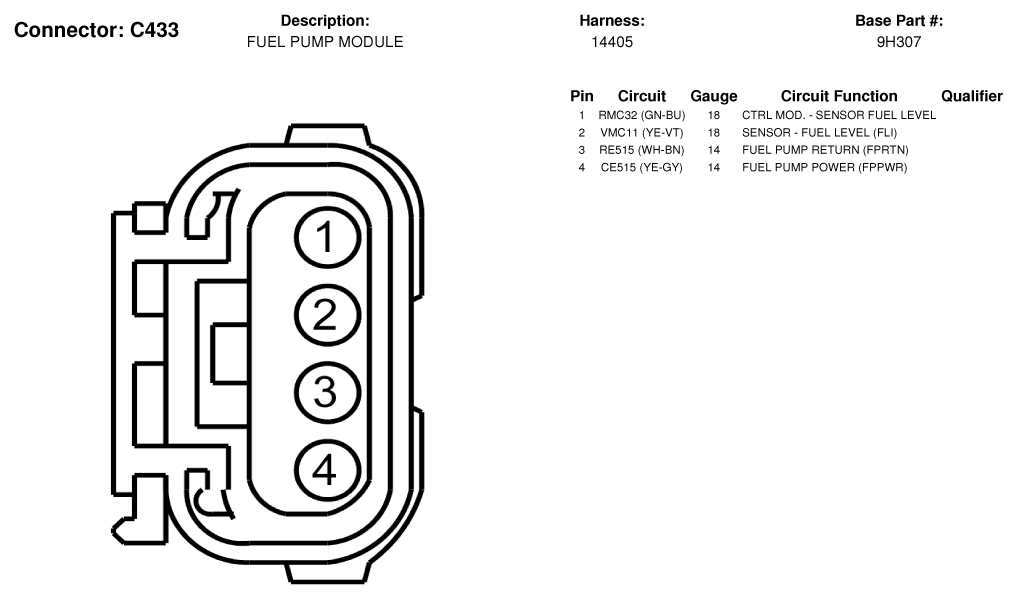

Fig 1: Fuel Pump Module Connector End View (C433)

G07327533

Courtesy of FORD MOTOR CO.
