Material Specifications

MATERIAL SPECIFICATIONS

Item Specification
Dow Urethane Adhesive
Betaseal™ Express
-
Dow Urethane One Step Glass Primer
Betaprime™ 5500 / 5500A / 5500SA
-
Sika Urethane Adhesive
Sika Tack ASAP
-
Sika Urethane Metal and Glass Primer
Sika 206 G+P
-
Ultra-Clear Spray Glass Cleaner
ZC-23
ESR-M14P5-A

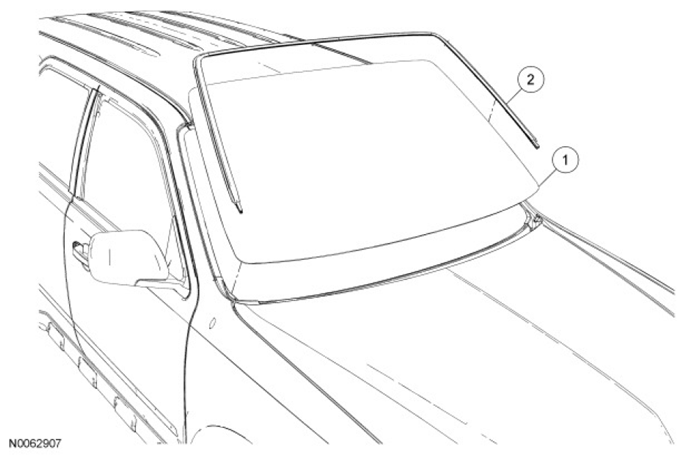

Fig 1: Identifying Windshield Glass Components
G07440866Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 03100 Windshield glass
2 03144 Windshield glass moulding
